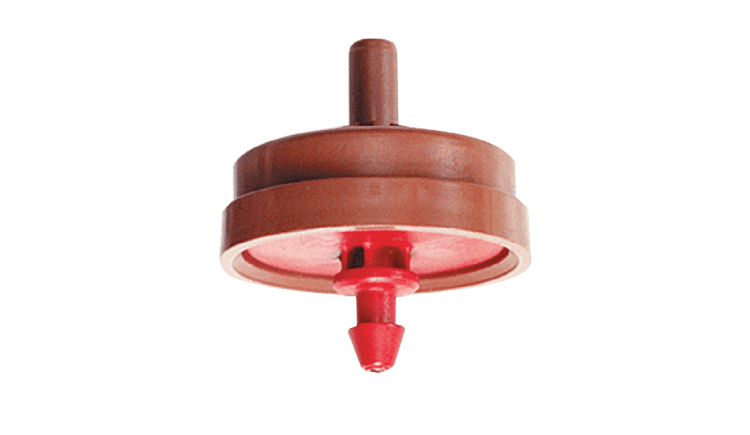

Techflow Pressure Compensating Emitters
Techflow Pressure Compensating Emitters

Techflow Pressure Compensating Emitters

Text to come

Product Overview
Overview

Why Techflow Pressure Compensating Emitters

  • Unique Emitter Design
    Regulates flow and provides continuous self-cleaning action during operation.
  • 2.2 psi Internal Check Valve
    Helps prevent low emitter drainage by holding back up to a 5′ column of water.

Product Advantages

  • Anti-Siphon Operation
    Prevents contaminates from being drawn into emitter.
  • Color-Coded Emitter
    Denotes flow rate.
  • Can Be Used with Techline HCVXR and CV Dripline
    Without causing dripline drainage.

Applications

  • For use with blank polyethylene tubing, Techline® HCVXR, CV, DL and RW
  • For use with systems with a wide range of pressure variations (14.5 to 58 psi)
  • Install on-surface or subsurface
  • Wide-spaced plantings
  • Tree planting
  • Hanging baskets
  • Flower boxes
  • Planters, pots, or interiorscapes

Specifications

  • Flow rates: 0.5, 1.0 and 2.0 GPH
  • Pressure compensation range: 10.15 to 58 psi
  • Maximum pressure: 58 psi
  • Uses 0.160” x 0.220” micro-tubing (Model EDTUBE – in black or white)
  • Barb size: Inlet 0.160” – 0.170” Outlet 0.160”
  • Recommended minimum filtration: 120 mesh
Resources
Learn More

Downloads
