The World’s most advanced continuous self-cleaning, pressure compensating dripline specifically designed for wastewater

Product Overview
Overview

Why Bioline® Fittings & Accessories

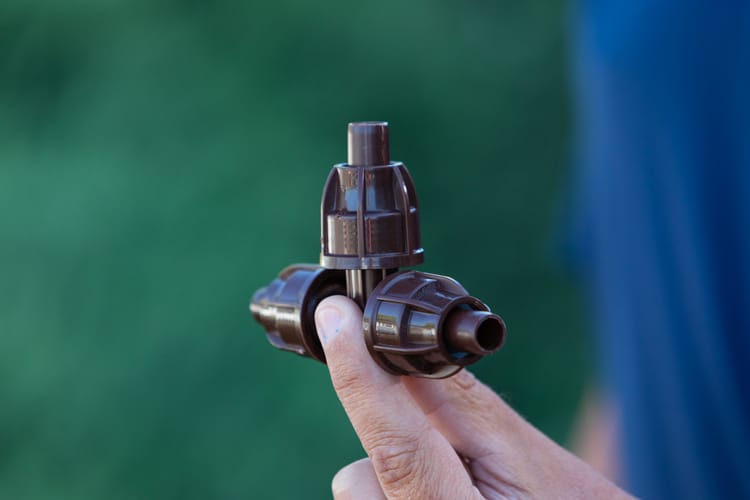

  • Barbed fittings for secure fit
  • Easy installation without glue or tools
  • Pressure compensation - all drippers deliver equal flow, even on sloped or rolling terrain.
  • Unique flow path - Turbonet technology provides more control of water and a high resistance to clogging.
  • Continuous self-flushing dripper design - flushes debris, as it is detected - throughout operation, not just at the beginning or end of a cycle. Ensures uninterrupted dripper operation.
  • Single hole dripper outlet from tubing:
    • - Better protection against root intrusion
    • - Allows the dripline to be used in subsurface applications without      need for chemical protection

Product Advantages

  • Maximum recommended system pressure with clamps – 58 psi
  • Allows for easy on-site inspection of proper fitting installation
  • Drippers capture water flow from the center of the tubing - ensures that only the cleanest flow enters the dripper.
  • Built-in physical root barrier - drippers are protected from root intrusion without the need for chemical protection. Water exits dripper in one location while exiting the tubing in another.
  • Three dripper flow rates - provides the broadest range of flow rates available. Allows the designer to match the dripline to any soil or slope condition.
  • Bioline tubing is completely wrapped in purple - easily identifying it for non-potable use, regardless of how the tubing is installed.
  • Anti-bacterial-impregnated drippers - prevents buildup of microbial slime.
  • Can be used subsurface - Bioline can be installed on-surface, under cover or subsurface.
  • No special storage requirements - does not degrade if stored outdoors.

Applications

  • Watering System for Potted Plants and Nursery Containers
  • Typically installed following a treatment process
  • Can be used with domestic septic tank effluent with proper design, filtration and operation
  • Reuse applications including municipally treated effluent designated for irrigation and other disinfected and non-disinfected water sources.



Specifications

  • Dripper flow rates: 0.4, 0.6 or 0.9 GPH
  • Dripper spacings: 12”, 18” or 24” dripper spacings and blank tubing
  • Pressure compensation range: 7 to 58 psi
  • Maximum recommended system pressure: 58 psi
  • Tubing diameter: 0.66” OD, 0.56” ID
  • Tubing color: Purple color indicates nonpotable
  • Coil lengths: 500’ or 1,000’ (Blank tubing in 250’)
  • Recommended filtration: 120 mesh
  • Bending radius: 7”
  • UV resistant
  • Tubing material: Linear low-density polyethylene
  • Additional spacing and pipe sizes available by special order. Please contact Netafim USA. Customer Service for details.
