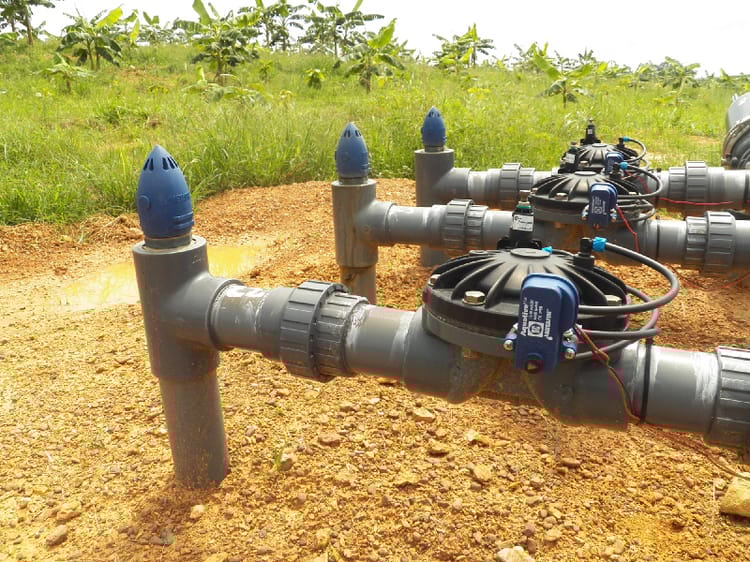

Ideal for water control in PVC networks and surface or sub-surface installations. The diaphragm is the only moving component - no shafts, seals or bearings are located within the water passage. These valves provide high resistance to corrosive water containing fertilizers and chemicals. Manufactured with threaded and socket (slip) connections and control functions including pressure reducing, electric or remote control.

Product Overview
Overview

Nylon and PVC Valves

Nylon and PVC Valves offer structural simplicity and superior hydraulic performance for surface or subsurface agricultural applications. The valves operate by pipeline or external pressure and the reinforced rubber diaphragm seals the water passage when the line pressure reaches the valve’s control chamber. They are simple to install with slip or threaded connections and available in 1″ to 6″ sizes. Netafim offers 3-Way Control Nylon and PVC Valves and two models of 2-Way Control Nylon Valves. The PBI 2-Way Electric Control Valve is standard with a throttling handle, has a built-in solenoid and large internal water passage with no moving parts to prevent clogging. The Series 80 2-Way Electric Control Valve is suitable for high pressure applications, has quick reaction to opening and closing and has a flow control stem.

Product Advantages

  • Superb hydraulic performance.
  • Simple design with only one moving component, the diaphragm, means parts are not located in the water passage way.
  • Low operating pressure.
  • Simple inline installation with minimal maintenance requirements for maximum dependability.
  • Durable, corrosion-resistant materials provide high resistance to corrosive water containing fertilizer and chemicals.
  • Nylon valves have threaded connections.
  • PVC valves have threaded or socket (slip) connections allowing pipes to be cemented into the valves.

Applications

  • Headworks assemblies for use in advanced treatment wastewater drip dispersal systems
  • Ideal for water control in all piping networks
  • Above or below grade installations
  • Remote control irrigation for master valves and automated or manual operations
  • Nylon valves are ideal for mild corrosive and acidity levels in the water
  • PVC Valves are ideal for higher corrosive and acidity levels in the water

Specifications

  • Recommended Operating Pressure (psi):
    Nylon – 12 minimum to 145 maximum
    PVC – 12 minimum to 115 maximum (based on valve size – see chart)
  • Maximum Water Temperature 140° F
  • Optional Functions:
    Manual, Electric, Pressure Reducing, Pressure Sustaining
