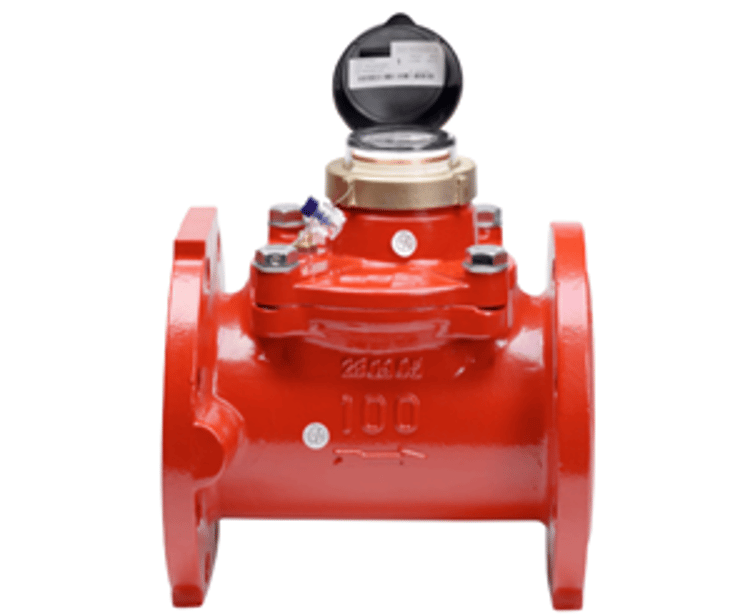

IRT Series Water Meters
IRT Series Water Meters

IRT Series Water Meters

IRT Water Meters are ideal for moderate to dirty water conditions. The specially designed paddle wheel measuring device provides a free water passage resulting in low head loss and the ability to accurately measure water with high levels of impurities or debris. Accuracy is achieved over a wide range of flows. Available in 3″, 4″, 6″, 8″ and 10″ sizes.

Benefits
Benefits

Why WST Series Water Meters

  • Ideal for moderate to dirty water conditions.
  • Water is metered with a paddle wheel located at the top of the water passage which provides a free water passage eliminating clogging from debris.
  • Low headloss with the ability to accurately measure water with high levels of impurities or debris.
  • Bearings are constantly flushed during operation to eliminate deposits of solids.
  • Registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.

Product Advantages

  • Simple maintenance with field replaceable calibrated measuring unit.
  • High level of accuracy (±2%) is achieved over a wide range of flows.
  • Wide selection of register options.

Applications

  • Text example

Specifications

  • Sizes: 3″, 4″, 6″, 8″ and 10″
  • Maximum Working Pressure: 230 psi
  • Maximum Liquid Temperature:140°F
  • Body Material: Cast Iron with Polyester Coating
  • Connections: Flange
  • Register Options: Reed Switch or ER Digital
  • Reed Switch Register Pulse Outputs: 10, 100, 32.6 or 325.9
  • ER digital Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; A Feet – .0001, .001, .01, 1
  • Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream (D = meter size)

Models IRT Series Water Meters
