M and WMR Water Meters are the industry’s smallest water meters. They offer the best cost, performance and long life. The M utilizes the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy. The WMR contains an in-line axial turbine which allows foreign matter to pass through the meter without clogging. Wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reasons for the high reliability of this design even in hard water. Available in 3/4″, 1″, 1 1/2″ and 2″ sizes.

Benefits
Benefits

Why M & WMR Series Water Meters

  • Industry’s smallest water meters provide ±2% accuracy over a wide range of flows.
  • Magnetically driven sealed registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.
  • ‘M’ Water Meters utilize the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy.
  • ‘M’ Water Meters have only one moving part, the impeller, is in contact with the water for minimum wear and the utmost reliability.

Product Advantages

  • ‘WMR’ Water Meters contain an in-line axial turbine which allows foreign matter to pass through the meter without clogging.
  • Wide clearances in the measuring chamber provide full pipe flow measurements and high reliability.

Applications

  • For main supply lines in agriculture and landscape applications

Specifications

Specifications ‘M’ Water Meters

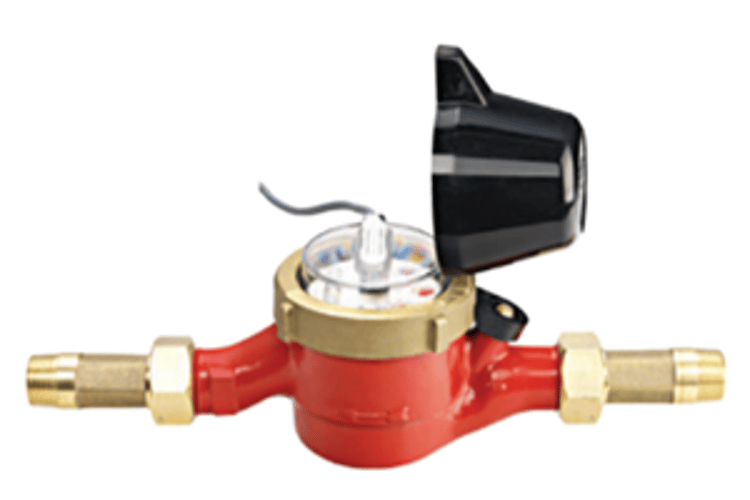

  • Iron Body Sizes: 3/4″, 1″ and 1 1/2″

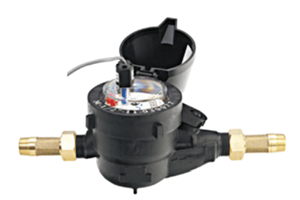

  • Plastic Body Sizes: 3/4″ and 1″
  • Maximum Working Pressure: 140 psi
  • Maximum Liquid Temperature: 122°F
  • Body Material: Corrosion Proof Copper Alloy or Polypropylene (plastic)
  • Connections: Male Pipe Thread
  • Register Options: Reed Switch, Photo Diode or ER Digital
  • Reed Switch Register Pulse Outputs: 0.1 or 1.0
  • Photo Diode Register Pulse Outputs: 0.0015, 0.0021 or 0.0074
  • ER Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; Acre Feet – .0001, .001, .01, .1
  • Straight Pipe Installation Requirement: None

Specifications
‘WMR’ Water Meter

  • Size: 2″
  • Maximum Working Pressure: 230 psi
  • Maximum Liquid Temperature: 131°F
  • Body Material: Cast Iron with Polyester Coating
  • Connections: Male Pipe Thread
  • Register Options: Reed Switch, Photo Diode or ER Digital
  • Reed Switch Register Pulse Outputs: 10 or 3.26
  • Photo Diode Register Pulse Outputs: 1.0 or 0.055
  • ER Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; Acre Feet – .0001, .001, .01, .1
  • Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream (D = meter size
