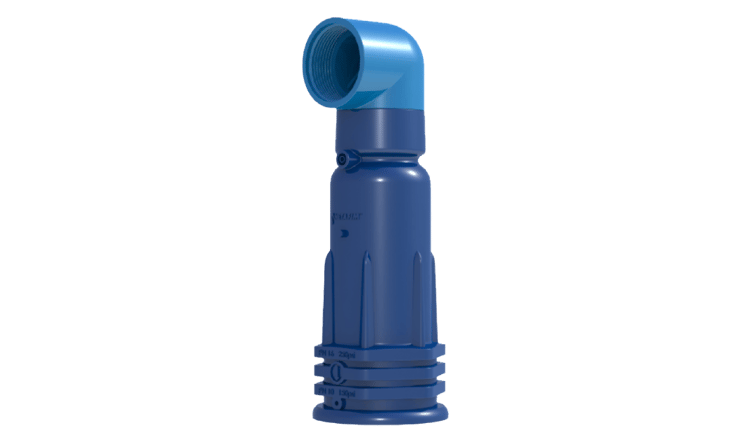

Pro Air Vent
Pro Air Vent
Netafim system components are an integral part of your drip irrigation system. The simple and proven design of our Air Vents, Check Valves and Pressure Regulators mean longer life and trouble-free operation. Each component is manufactured with the highest quality controls – ensuring maximum system performance and reliability.
Benefits
Benefits
Why Pro Air Vent
Pro Air Vents have a dynamic design which allows for high capacity air discharge while preventing premature closing. A one-piece sealed unit contains the float and seal making it easy to remove and replace.
Product Advantages
- Reliable operation reduces water hammer incidents.
- Dynamic design allows for high capacity air discharge whie preventing premature closing.
- Float and seal assembly are enclosed in a one-piece, easily replaceable unit – independent of the air vent body.
- Sealing assembly, with its unique patented rolling seal feature which allows gradual opening, closing and self-cleaning, is contained in the one-piece float assembly.
- Simple and reliable reinforced nylon body is compact in size and light-weight.
- The light-weight feature is ideal for installation on plastic piping systems and other light-weight piping systems.
- Threaded discharge outlet allows connection of additional piping for venting and drainage.
- Body and all operating parts made of high-strength corrosion-resistant composite materials.
Applications
- Working pressure range: 1 – 150 psi
- Maximum working temperature: 140° F
- Available size: 2″ NPT female threaded
Specifications
- Sizes: 3″, 4″, 6″, 8″, 10″ and 12″
- Maximum Working Pressure: 230 psi
- Maximum Liquid Temperature: 140°F
- Body Material: Cast Iron with Polyester Coating
- Connections: Flange
- Register Options: Reed Switch, Photo Diode or ER Digital
- 3″, 4″, 6″, and 8″ Reed Switch Register Pulse Outputs: 10, 32.6 or 100
- 10″ and 12″ Reed Switch Register Pulse Outputs: 100 or 325.9
- 3″, 4″, 6″, and 8″ Photo Diode Register Pulse Outputs: 0.1172, 0.1097, 0.2027 or 0.378
- 10″ and 12″ Photo Diode Register Pulse Outputs: 4.505 or 6.73
- WST ER Digital Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; Acre Feet – .0001, .001, .01, .1
- 3″, 4″, 6″, and 8″ Straight Pipe Installation Requirement: 5 x D* upstream and 2 x D downstream
- 10″ and 12″ Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream
Models Pro Vent Air
Pro Air Vent
