Pressure Sustaining Normally Open (PSNO) Valves are the universal solution for all types of filters to maximize flush cycle efficientcy. A PSNO valve will ensure that the filter initiates a backflush cycle with the required pressure by maintaining the correct pressure upstream of the valve (downstream of the filter). Filters flush more efficiently resulting in less maintenance, less downtime and less water and energy used. There is no need for a larger pump, saving capital and operating expenses, to achieve the correct pressure during backflush for proper cleaning.

Benefits
Benefits

Benefits

  • Accurate stable control of the upstream pressure is maintained by the PSNO Valve pilot even with changes in flow
  • Quick reaction time is acheived since the PSNO Valve goes into sustaining mode right before filter starts flushing
Nylon and PVC Valves
Nylon and PVC Valves

Nylon and PVC Valves Operations

Pressure Sustaining Normally Open (PSNO) Valves Operation

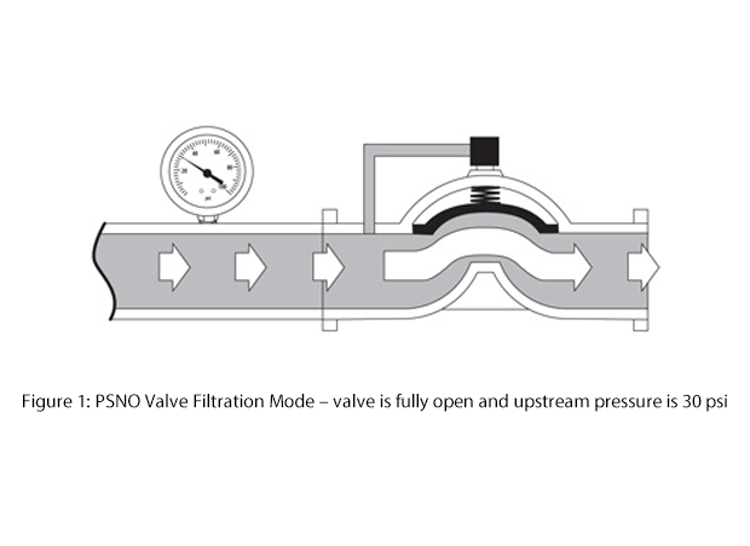

A PSNO Valve is always installed downstream of the filter. During standard operation, filtration mode, the PSNO Valve is fully open and flow or pressure to the field is not restricted. The solenoid is not energized at this time (See Figure 1).

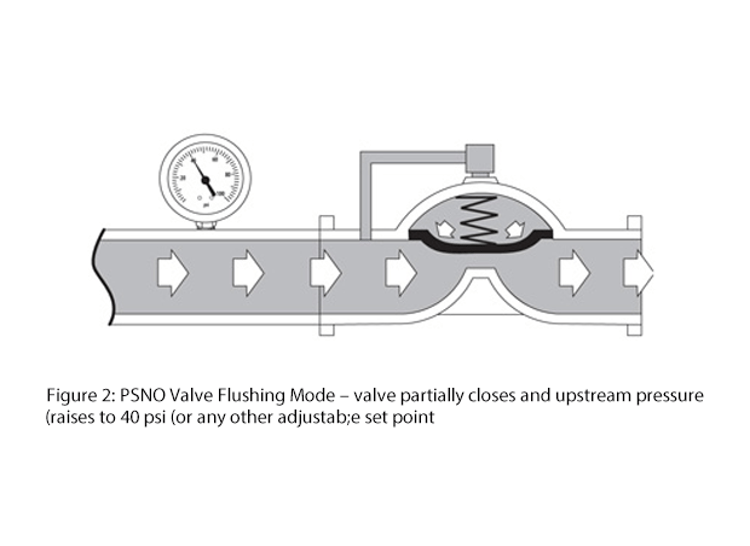

During the flushing mode, the solenoid is energized and the PSNO Valve partially closes in order to provide the desired pressure to the filter for proper flushing. This is referred to as the sustaining mode. During the sustaining mode, the valve maintains a “set” upstream pressure regardless of flow rate or pressure variations (See Figure 2).

At the end of the flush cycle, the solenoid is de-energized and the PSNO Valve will fully open again.

Product Advantages

  • Easy installation and operation along with reliability resulting in less maintenance
  • Hydraulic valve with direct sealing diaphragm – no stem, shaft or bearings within the water passage for longer life

Applications

  • When valve upstream pressure is not enough for proper filter flushing
  • Ideal for all types of filters – media or disc

Specifications

Pressure Sustaining Normally Open (PSNO) Valves Technical

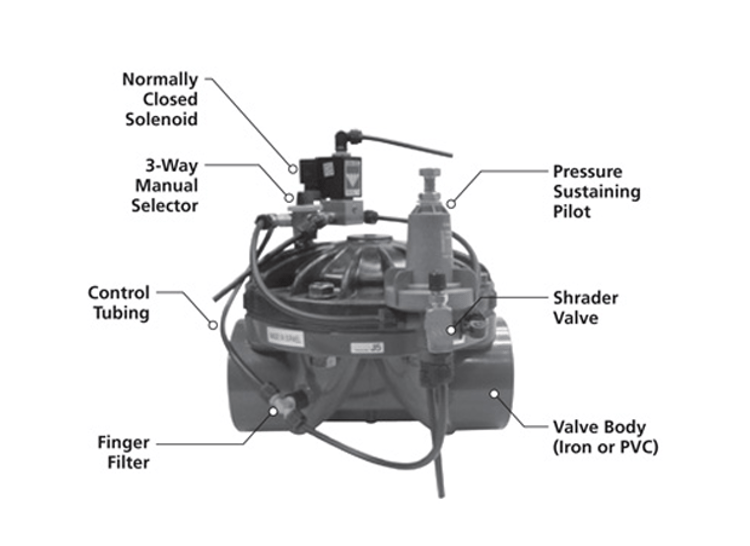

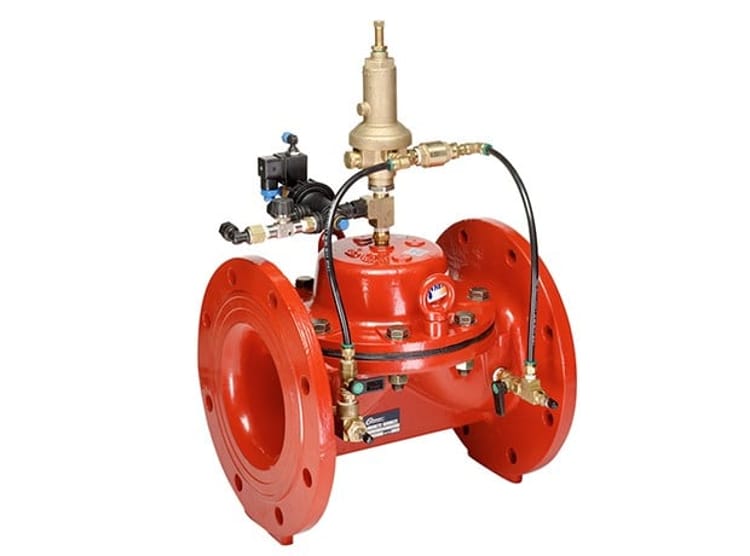

Pressure Sustaining Normally Open (PSNO) Valves ship pre-assembled by Netafim USA following strict quality standards. The PSNO Valve consists of a Basic Valve, a Normally Closed Solenoid, a Pressure Sustaining Pilot, and an Accelerator Relay (if the valve is 6” and larger).

  1. Basic Valve – A basic valve consists of four simple parts – body, spring, diaphragm and bonnet – making it the simplest valve to operate and maintain. Installation is quick and easy with its unique inline design which also creates low losses at high flow rates. Available in two body material options – PVC or Iron – both with a direct sealing natural rubber diaphragm.
  2. Normally Closed Solenoid – A solenoid valve receives an electric command from a controller and converts it into a hydraulic command to the main valve. This enables the opening and closing of the valve by allowing the passage of water into or from the control chamber of the main valve. PSNO valves are standard with a 24VAC Normally Closed solenoid.
  3. Pressure Sustaining Pilot – A pilot is a mini-valve which ensures accuracy of the regulated pressure for hydraulic control valves. In PSNO valves, when the line presure is lower than the pilot’s spring setting (the set point), the pilot permits the passage of water into the chamber of the main valve, partially closing the vlave. PSNO valves are standard with a Green Pilot Spring and a recommended set point of 45 psi.
  4. Accelerater Relay – An accelerateor relay is designed with a large flow of passages to allow faster reaction time of the main PSNO valve. As soon as the solenoid is energized, the relay allows larger amounts of water to flow into the main valve chamber, partially closing the valve. It is a standard component on all 6″ and larger valves.

Models Pressure Sustaining Normally Open (PSNO) Valves
