Series 90 PVC Valves

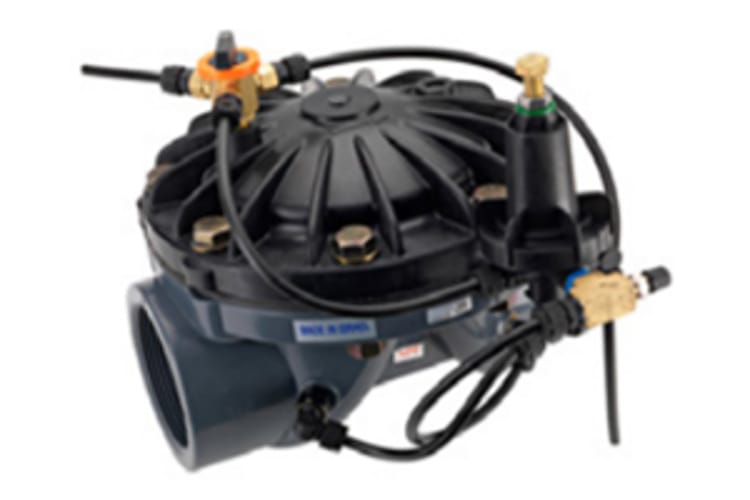

Nylon and PVC valves offer structural simplicity and superior hydraulic performance for surface or subsurface agricultural applications. The valves operate by pipeline or external pressure and the reinforced rubber diaphragm seals the water passage when the line pressure reaches the valve’s control chamber. They are simple to install with slip or threaded connections and available in 1″ to 6″ sizes.

Why Series 90 PVC Valves?

Product Advantages
Superb hydraulic performance.
Simple design with only one moving component, the diaphragm, means parts are not located in the water passage way.
Low operating pressure.
Simple inline installation with minimal maintenance requirements for maximum dependability.
Durable, corrosion-resistant materials provide high resistance to corrosive water containing fertilizers and chemicals.
Nylon valves have threaded connections.
PVC valves have threaded or socket (slip) connections allowing pipes to be cemented into the valves.

Applications

Ideal for water control in PVC networks
Agriculture or Greenhouse and Nursery applications
Surface or subsurface installations
Portable systems

Nylon and PVC Valves Technical

Specifications

Recommended Operating Pressure (psi): Nylon – 15 minimum to 145 maximum PVC – 7 minimum to 145 maximum (based on valve size)
Maximum Water Temperature: 140° F
Optional Functions: Manual, Electric, Pressure Reducing, Pressure Sustaining or Remote Control and more functions

Materials

Nylon Valve Body, Bonnet, Seat:Glass Reinforced Polyamide (GRP)
PVC Valve Body: uPVC
Spring: Stainless Steel (AISI 302)
Nuts, Bolts, Washers: Zinc Coated Steel (BS 5216)
Diaphragm: Natural Rubber
Connections: Threaded – ANSI (NPT Female) Socket – IPS, PVC Standard

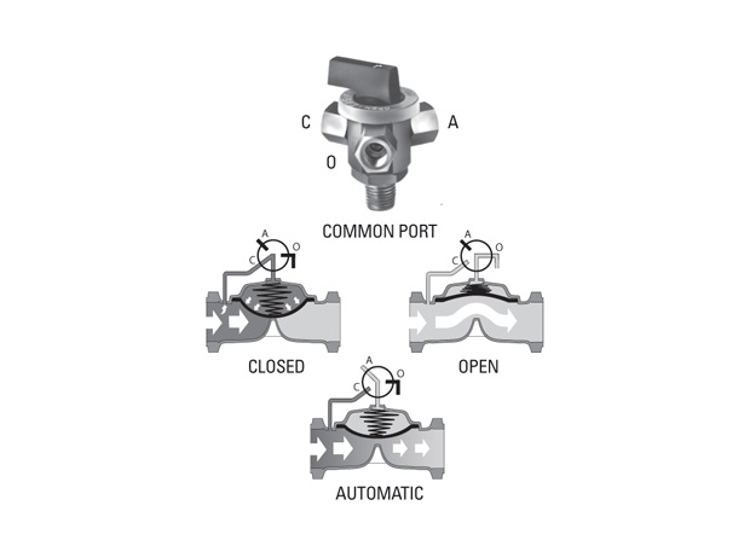

Manual Valve Operation with a 3-way Selector

CLOSED (C): Upstream pressure or pressure from an external source is applied to the control chamber. Initiated by the spring, the diaphragm is pressed down to close the valve drip-tight.
OPEN (O): Relieving the water or air pressure to the atmosphere from the control chamber causes the valve to open.
AUTOMATIC (A): The automatic port of the 3-Way selector is connected to a solenoid, hydraulic relay or pilot which controls the valve. The common port of the 3-Way selector connects the control chamber to either A, O or C, depending on the direction the selector is pointed.
