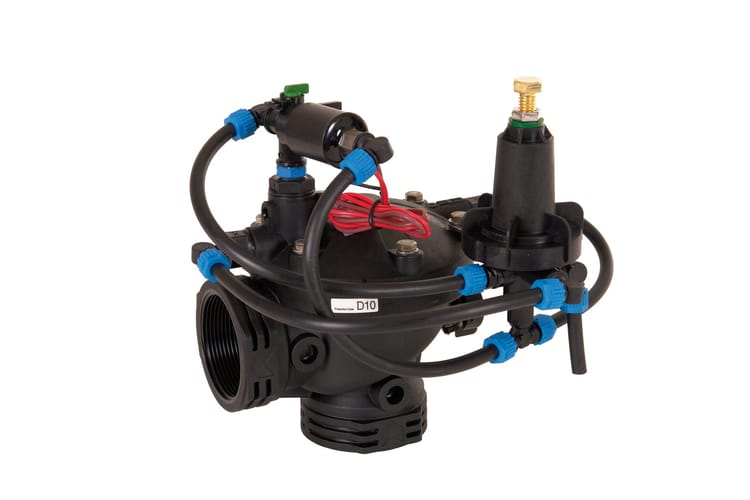

Series 80 Nylon Control Valves

Series 80 Control Valves have quick reaction and drip tight closure for precise and accurate irrigation. The exceptionally low inrush and holding currents allow longer wire runs from valve to controller saving installation time and money. Made from durable and corrosion-resistant nylon materials, the simple design means quick installation with minimal maintenance. Available in both 2-Way and 3-Way options.

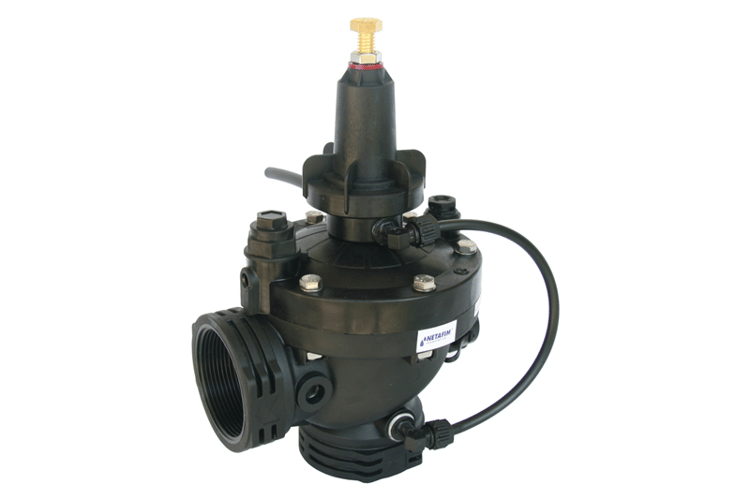

SERIES 80 QR VALVE

QUICK PRESSURE RELIEF VALVE

A pilot-operated, quick-acting pressure-relief valve, designed for pressure-surge protection of irrigation systems.

The valves continuous pressure sensing action keeps a drip-tight closed position for superior performance and slow closing speed is regulated to prevent shuttering and pressure surges for maximum security pressure. Protect your farms bottom line and keep your irrigation system operating efficiently

  • Pilot-operated valve eliminates sticking, adds the reliability of opening and closing, and offers more flexibility and adjustment.
  • Fast opening and slow, regulated closure prevents shuttering and secondary surges Leak-proof design ensures zero-leakage in high pressure applications
    Extreme opening and closing accuracy at the same pressure setting
    Constructed from rugged, corrosion-proof composite materials
  • Valve is preset at 70 psi
    Compact lightweight design for easy installation
    Easy adjustment with a wrench and applying small torque

Why Series 80 Nylon Control Valves?

BENEFITS

  • Flow control stem allows manual control from full closure up to maximum capacity.
  • Suitable for dirty water applications with clog-free labyrinth inlet for command water.
  • Quick reaction to opening and closing and a drip-tight seal for accurate irrigation.
  • Available in multiple body configurations and control functions.
  • Very low friction loss allows valve use with a wider range of flows.
  • Durable, corrosion resistant materials for long life.

Series 80 Control Valve Features

2-WAY SERIES 80 VALVE FEATURES

  • Suitable for high-pressure applications with quick reaction to opening and closing.
  • Exceptionally low inrush and holding current allows the longest wire run from valve to controller.
  • Tight sealing valve with fully supported diaphragm.
  • Stable solenoid to voltage fluctuations with low sensitivity to dirt – no diode solenoid.
  • Integrated check valve (1 1/2″ and 2″ sizes) ensures valve remains closed until the controller designates opening.
  • Optimal for vertical installations.

3-WAY SERIES 80 VALVE FEATURES

  • All control systems (pilot and solenoid) are assembled on the bonnet. No tubes are connected to the valve body.
  • Tight sealing vale with fully supported diaphragm.
  • Straight of angle with globe configuration activated by a fully supported diaphragm.
  • Integrated check valve ensures valve remains closed until the controller designates opening.
  • Vertical or horizontal installations.

Applications

2-WAY

  • For mild corrosive and mild acidity levels in the water
  • For remote control, master valve, automated or manual operations
  • Greenhouse and Nursery irrigation including hydroponic and mist systems

3-WAY

  • Pressure regulation of irrigation systems – small blocks
  • For remote control, master valve, automated or manual operations – accurate irrigation control
  • M and Nursery irrigation including hydroponic and mist system

Specifications

2-WAY

  • Recommended Flow Ranges:
    3/4″ valve – .01 to 26 GPM
    1″ valve – .01 to 44 GPM
    1 1/2″ valve – .25 to 110 GPM
    2″ valve – .25 to 176 GPM
  • Valve Configurations:
    3/4″ and 1″ valves – Globe
    1 1/2″ and 2″ valves – Globe or Angle
  • Standard 2-Way Electric Normally Closed Valve
  • Minimum Operating Pressure: 7 psi
  • Maximum Operating Pressure: 150 psi
  • Maximum Water Temperature: 140° F
  • Standard Solenoid Voltage: 24VAC± 10% voltage
  • Solenoid Inrush Current: .22A
  • Solenoid Holding Current: .095A
  • Optional Solenoid Voltage: 24VDC, 12VDC, 12VDC latching, 120VAC

3-WAY

  • Recommended flow ranges:
    • 1 1/2″ valve – .25 to 110 GPM
    • 2″ valve – .25 to 176 GPM
  • Valve Configurations:
    1 ½” and 2” – Globe or Angle
  • Minimum Operating Pressure: 7 psi
  • Maximum Operating Pressure: 150 psi
  • Maximum Water Temperature: 140° F
  • Optional Solenoid Voltages: 24VDC, 12VDC, 12VDC latching, 120VAC
