Quick reaction
Fast acting pressure regulation valve with minimum fluctuation in downstream pressure to protect your system from water hammers, and address the need for fast reaction in intensive irrigation

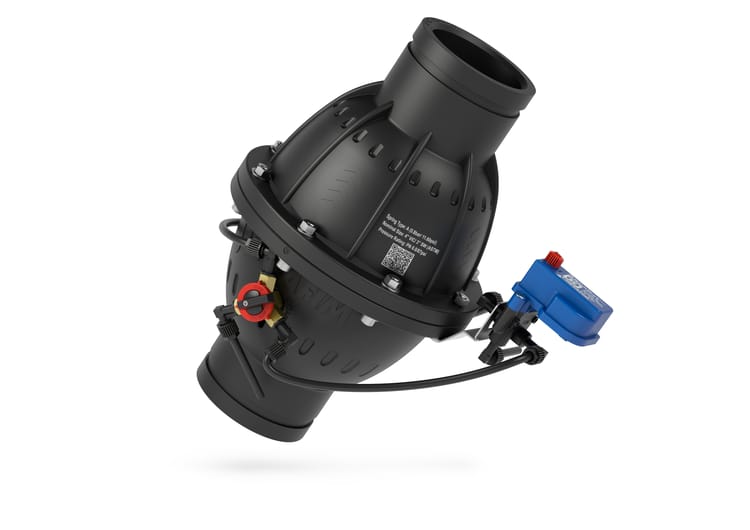

DPR-3000
Direct Pressure Regulating Valve for growers looking for quick reacting valve to protect their irrigation system or for irrigation scheduling.
Suitable crops
This product can be used across a range of crops, including but not limited to:
Downloads
Benefits & features
Explore the key benefits and features of this product.
Remote operation
By hydraulic-relays operators or solenoids such as Aquative™ .Enables remote control ON/OFF operation and full automation when connected to a controller.
Great Modularity
Delivers consistent pressure and maximum system uptime, with a modular design that allows easy customization of springs and connection types — compatible with both ISO and ASTM standards.
Plug and Play – simple design
The DPRV is engineered for effortless installation and operation — just connect, set, and go. With a pre-calibrated mechanism and easy field handling, it fits seamlessly into any submain or main line, delivering instant performance without extra setup or adjustments.
Installation environment
- Designed for agricultural irrigation systems
- Quick response for intensive irrigation requirements
- Suitable for open-field and greenhouse installations
- Operate under standard water conditions with appropriate upstream filtration
- Installation must follow Netafim guidelines and comply with local engineering standards
Specifications
- Connections types: Grooved (VIC) 4"; solvent welded (SW) ASTM 3"/ ISO 90 mm
- PN rating – 6.0 bar / 87 psi
- Flow rates – Min. 20 m³/h (88.0 gpm); Max. 80 m³/h (352 gpm)
