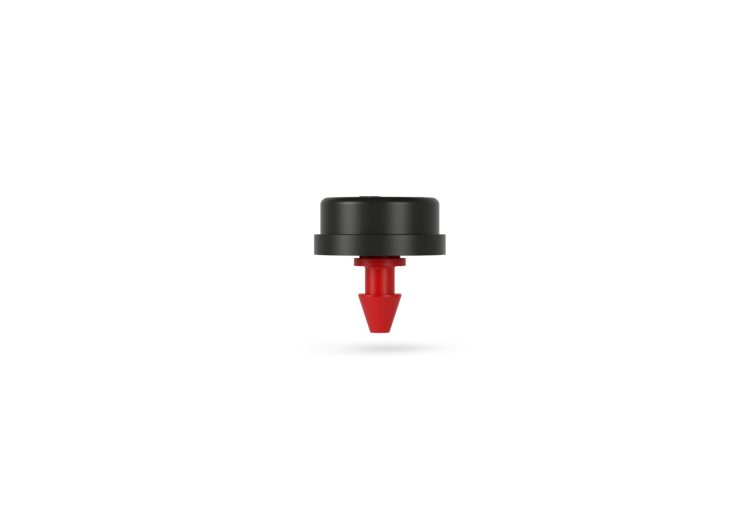

Non-Pressure Compensating Drippers

Non-Pressure Compensating Drippers are designed with a barbed inlet for easier installations. Features Netafim’s exclusive Turbonet flow path, an innovative concept that provides the dripper’s with a very large water passage, allowing contaminants to pass easily through the dripper virtually eliminating clogging. Color-coded for easy flow identification. Available in Button and Woodpecker styles and flow rates to meet the crop’s requirements.

Drip irrigation products, PCJ Online
Adaptability
Overview

Why Non-Pressure Compensating Drippers?

ADAPTABLE TO MANY APPLICATIONS - POSITION THE DRIPPER EXACTLY WHERE IT’S NEEDED

  • Consistently Uniform Yields: Precision delivery of water and nutrients over a broad pressure range assures excellent crop uniformity and consistently high yields.
  • Clogging Resistance: Continuous self-flushing technology ensures consistent flow-rates and flawless operation.
  • Easy to Scale: Number of drippers can be easily increased ensuring sufficient water to meet your plants' growth rate requirements.
  • Maximum Flexibility: Micro-tubes allow drippers to be positioned exactly where required, and split into several drip outlets if needed.
  • Anti-Drain Mechanism (in LCNL & HCNL models): Eliminates drainage & refill effect, and improves efficiency during pulse irrigation.

Product Advantages

  • Industry’s widest flow path and wider dripper cross-section allow large particles through the dripper’s short flow path.
  • Designed with a barbed base for easy installation into blank polyethylene tubing.
  • Several flow rates provide adaptability to many applications.

Applications

  • Vineyards
  • Orchards
  • Greenhouses and Nurseries

Specifications

  • BD Outlet Hole Color and Flow:
    Red 0.5 GPH, Black 1.0 GPH and Green 2.0 GPH
  • WP Base Color and Flow:
    Red 0.5 GPH, Black 1.0 GPH and Green 2.0 GPH
  • Maximum Recommended Operating Pressure: 40 psi
  • Recommended Filtration: 120 Mesh
  • Barbed outlet of WP Dripper accepts the following micro-tubing:
    3mm, 5mm or 1/8”
