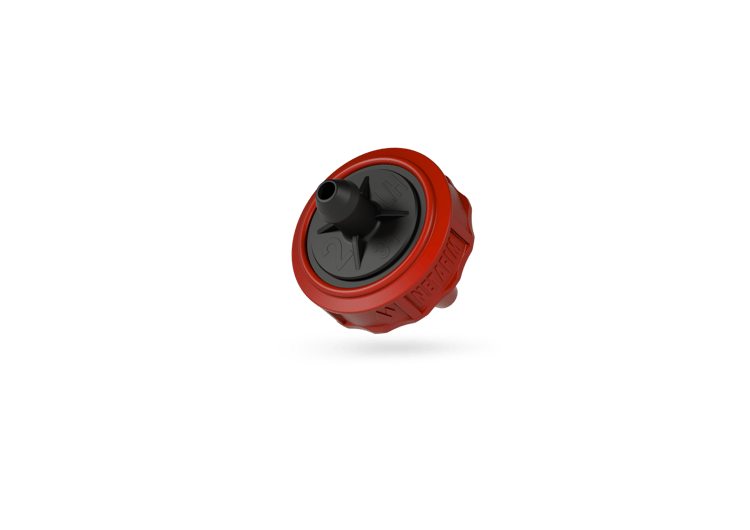

PCJ™ PRO On-Line Dripper

A compact, pressure compensated, continuously self-flushing dripper. Ideal for growers who seek uniform and precise irrigation under difficult water quality conditions and intensive irrigation scenarios. Suitable for greenhouses, nurseries, other protected crops, and agriculture.

Why PCJ™ PRO?

Pressure-Compensated: Precise and equal amounts of water delivered over a broad pressure range, ensuring exact distribution of water and nutrients along the laterals.
Anti-drain Mechanism: Eliminates drainage and refill effect, and improves efficiency in pulse irrigation even in steep topography. Pressure compensating non-leak in both low- and high-pressure options (LCNL and HCNL).
Continuously Self-Flushing: Flushes debris throughout irrigation cycle, while ensuring constant dripper operation even in challenging water qualities. Constructed with a 20% larger regulation chamber to make flushing even more efficient.

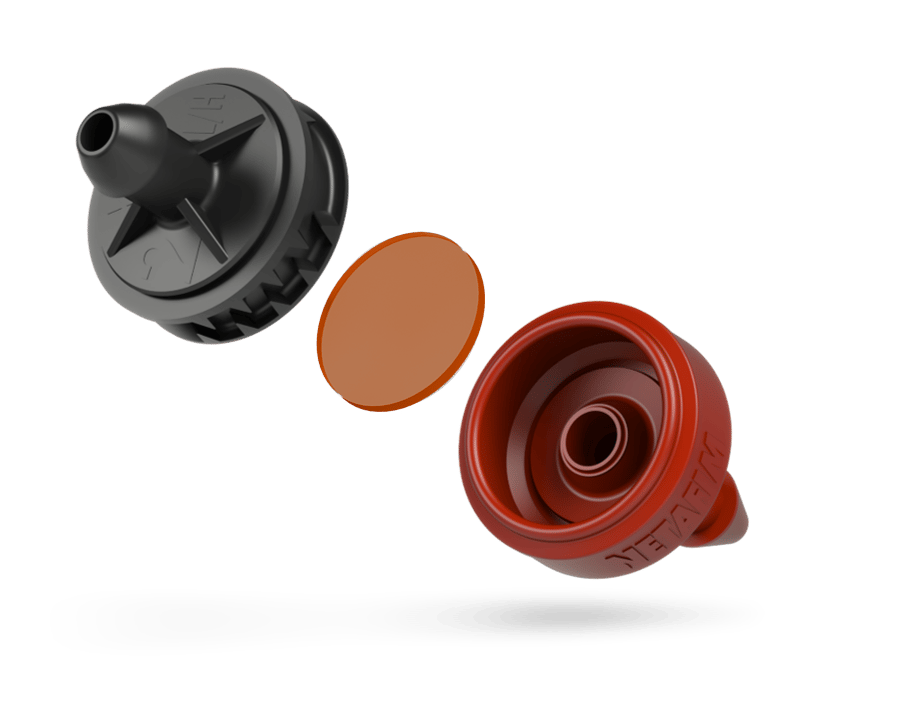

TurboNet™ Technology: Improved Labyrinth with wider water passages to increase turbulence and flushing efficiency. Water is drawn into the dripper from the stream center, protecting against the entrance of sediment.
Versatile: Multiple outlet type options make this dripper compatible in stand-alone installations as well as single and multiple outlet spider assemblies.
Improved Filtration: Unmatched clogging resistance with a 40% larger filtration area than leading competitor.

Specifications

Variety of flows and pressure compensation ranges available
Recommended filtration: 130 micron / 120 mesh*
TurboNet™ labyrinth with large water passage
Injected dripper, very low CV with injected silicon diaphragm
High UV resistant. Resistant to standard chemicals used in agriculture
Meets ISO 9261 Standards with Israel Standard Institute (SII)-certified production

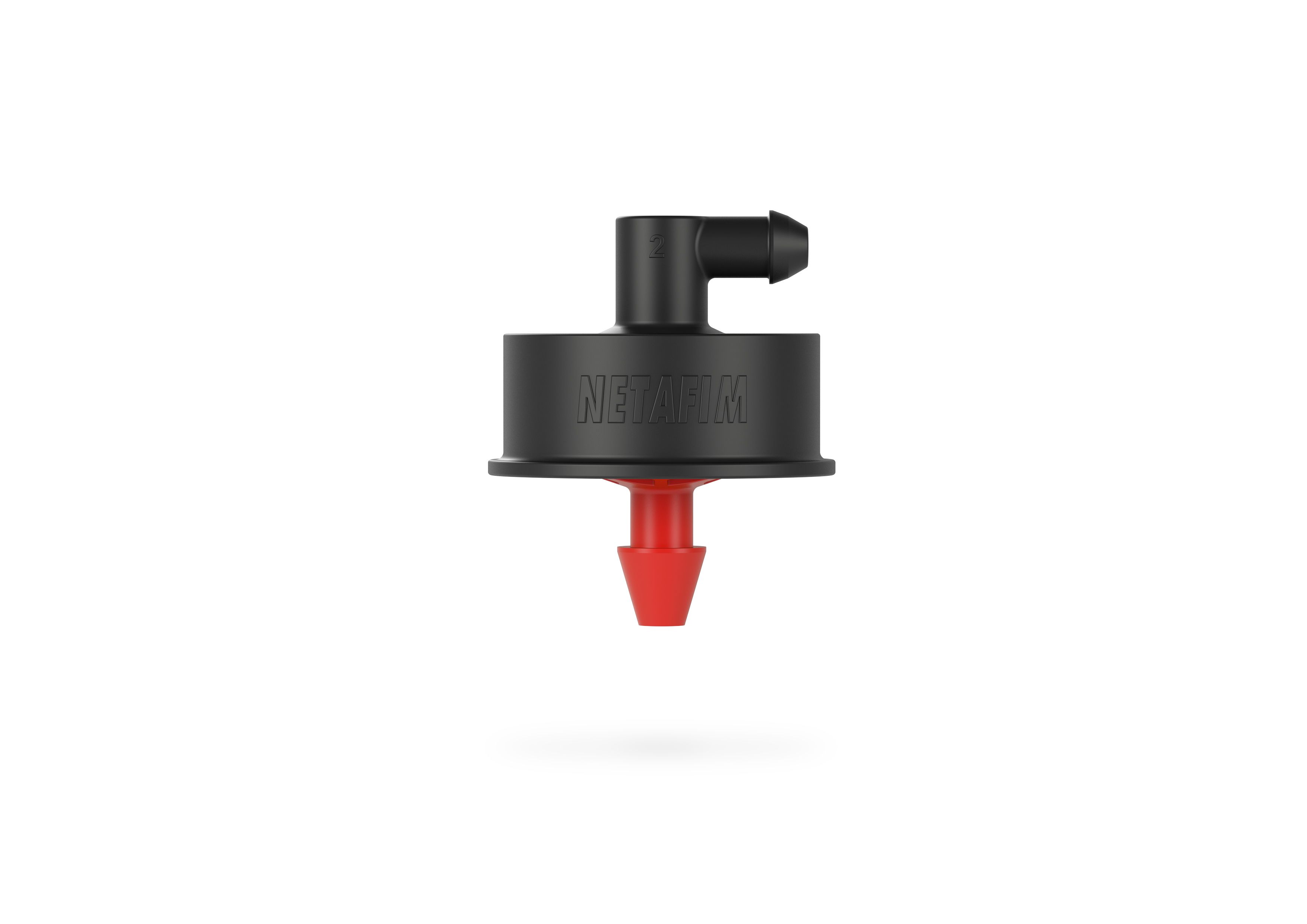

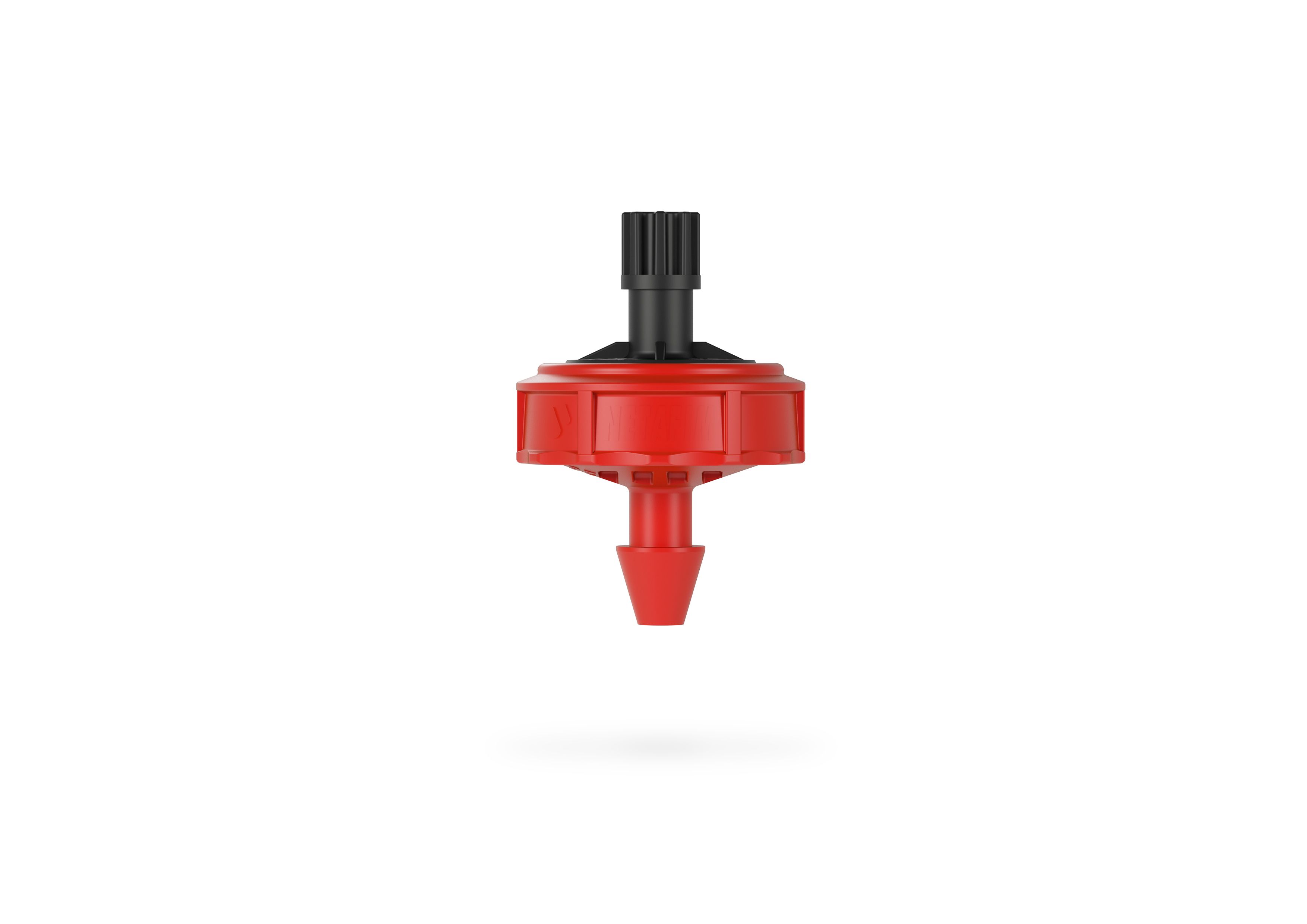

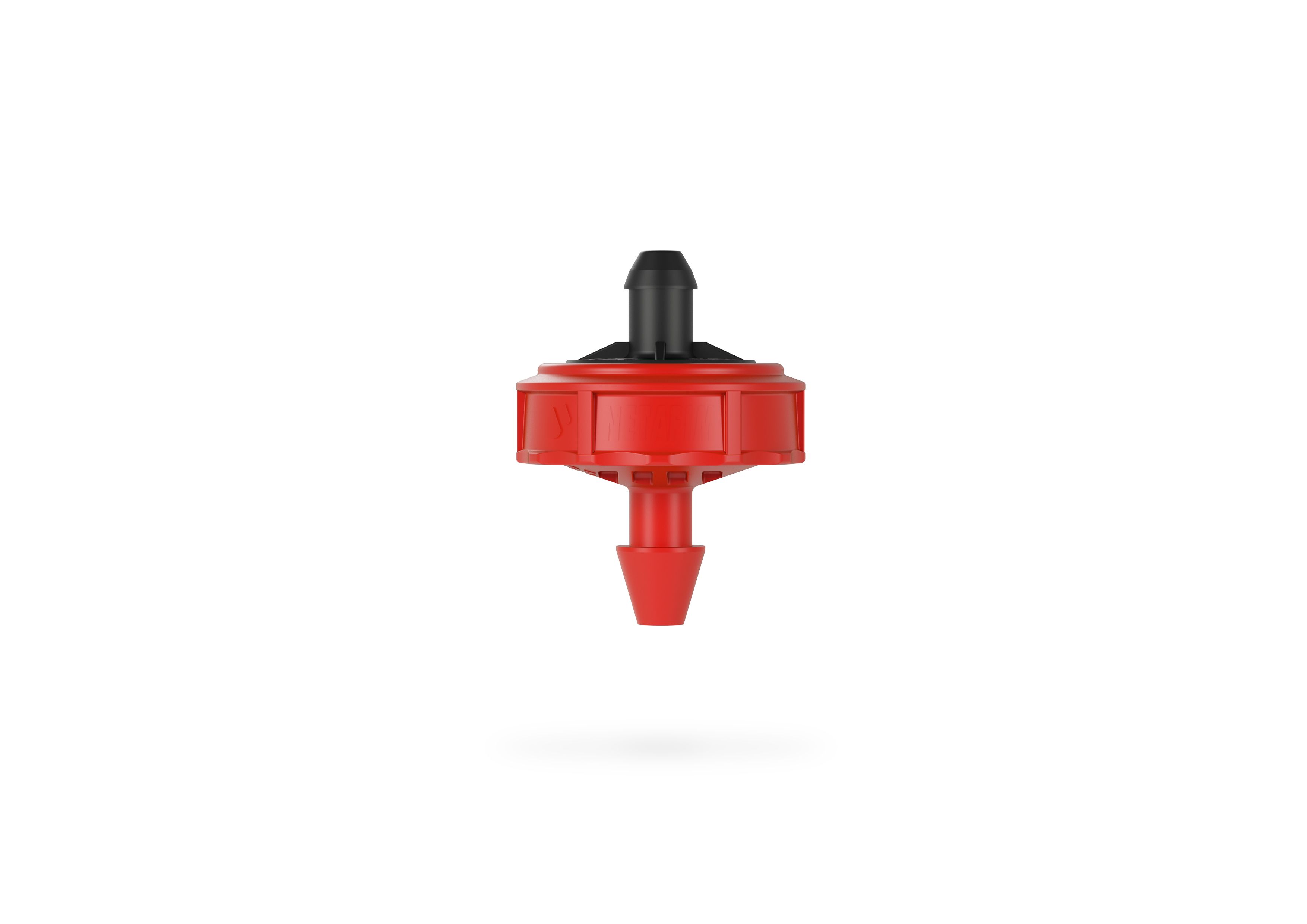

Different Outlets: 3mm straight or angled barb, 4mm straight barb, nipple (press-fit)

*Select filtration method based on the kind and concentration of particles in the water. Wherever sand exceeding 2 ppm is present, a Hydrocyclone should be installed before the main filter. Where sand/silt/clay solids exceed 100 ppm, Netafim pre-treatment instructions should be followed.
