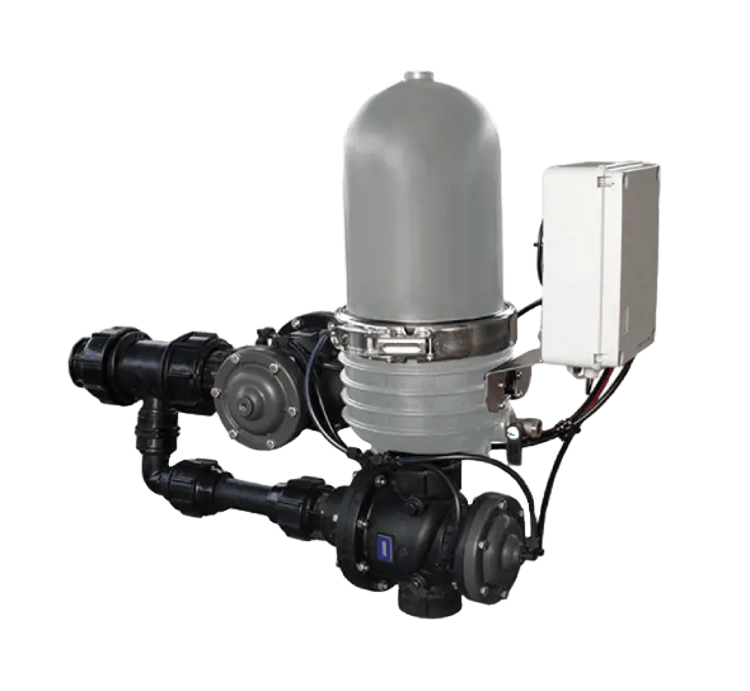

2″ Compact LP Disc-Kleen

Automatic Compact (Stand-alone) disc filter for low flow rates.

2″ Compact Low Pressure (LP) Disc-Kleen Filters are the perfect solution when automation is desired because manual cleaning is frequent and too cumbersome. A new redesigned filter spine allows flushing at a lower pressure of 30 psi, this saves money on energy costs. The Compact filter can be operated with two controller options, DC (4XD size batteries) or AC (110VAC), will control the filter back flush by pressure differential gauge and/or time. Installation is easy with this pre-assembled compact unit. There are two models based on overall flow with a maximum flow rate of 80 GPM.

Why Manual Screen Filters

Proven Disc Technology Depth Filtration
Provides highly effective filtering.
Made of Non-Corrosive Materials
Prevents rusting and corrosion from chemicals and weather.
Compact Pre-Assembled Unit For Easy Installation
Fits in tight spaces, saves space. Factory assembled and tested. Delivered ready for hook-up and immediate operation.

2″ Compact LP Disc-Kleen Filter Operations

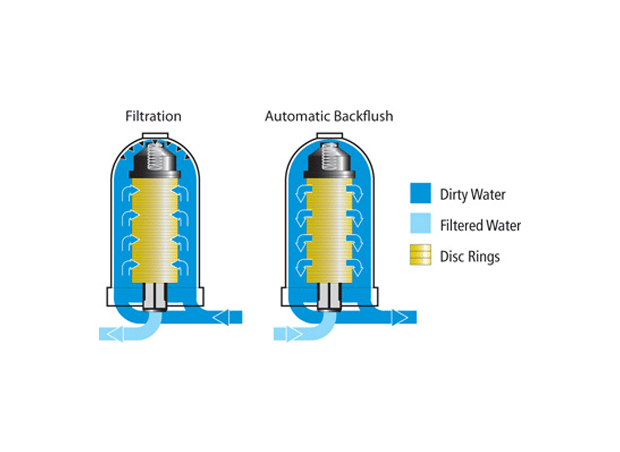

HOW AUTOMATIC DISC FILTER TECHNOLOGY WORKS

A filter element (spine) contains a stack of compressed discs with an overlapping series of grooves that force the debris to move through the numerous trap points.

FILTRATION PROCESS

Unfiltered water passes through a stack of tightly compressed discs. The water is forced to flow through the interlocking grooves of the disc rings where debris is trapped, releasing only filtered water to the irrigation system.

BACKFLUSH PROCESS

As debris in the filter increases, the backflush process is initiated. The discs separate and jets of clean water spray and spin the discs removing the trapped debris which is then flushed out.

2″ Compact LP Disc-Kleen Filter Operations

Product Advantages

Proven Disc-Kleen depth filtration technology - provides highly effective protection to any irrigation system.
Automatic self-cleaning filter for low volume capacity – 20 to 80 GPM.
Made of Non-Corrosive Materials – Constructed of the highest quality UV protected reinforced polymer plastic to prevent corrosion
Compact pre-Assembled unit for easy installation – Fits in tight spaces. A fully assembled, pre-tested unit for smooth installation and operation.
AC models uses 110 VAC power source; includes a 100 to 24 V transformer
and uses a 24 VAC solenoid
DC model uses (4) D batteries and a 12 VDC latching solenoid
Built-in backflush controller functions by pressure differential gauge and/or time.
Easily accessible bypass screen filter ensures clean water for backflushing.

Applications

Irrigation systems irrigating with surface water contain organic contaminants, silt & clay.
Irrigation systems with a capacity of 20 to 80 GPM requiring clean water to operate drippers or micro-sprinklers
Areas with or without electricity
When automatic backflushing is desirable because manual cleaning is frequent and too cumbersome
For residential, commercial, industrial, parks, municipal and non-potable water sources
Greenhouses and Nurseries
Waste water applications
For industrial use with recycled water or water discharged from a plant.
Can be use as primary or secondary treated effluent.

Specifications

Maximum Flow rate
- Standard Model: 1 - 80 GPM
- Low Flow Model: 1 - 40 GPM

Minimum Flow for Backflush:
- Standard Model - 35 GPM
- Low Flow Model - 20 GPM

Maximum Operating Water Pressure: 90 psi
Minimum Pressure for Backflush: 30 psi
Inlet: 2" Male Pipe Thread
Outlet: 2" Female Pipe Thread
Flush Port: 2" Female Pipe Thread
Minimum Allowable pH: 5
Max. Allowable Temperature: 158° F
