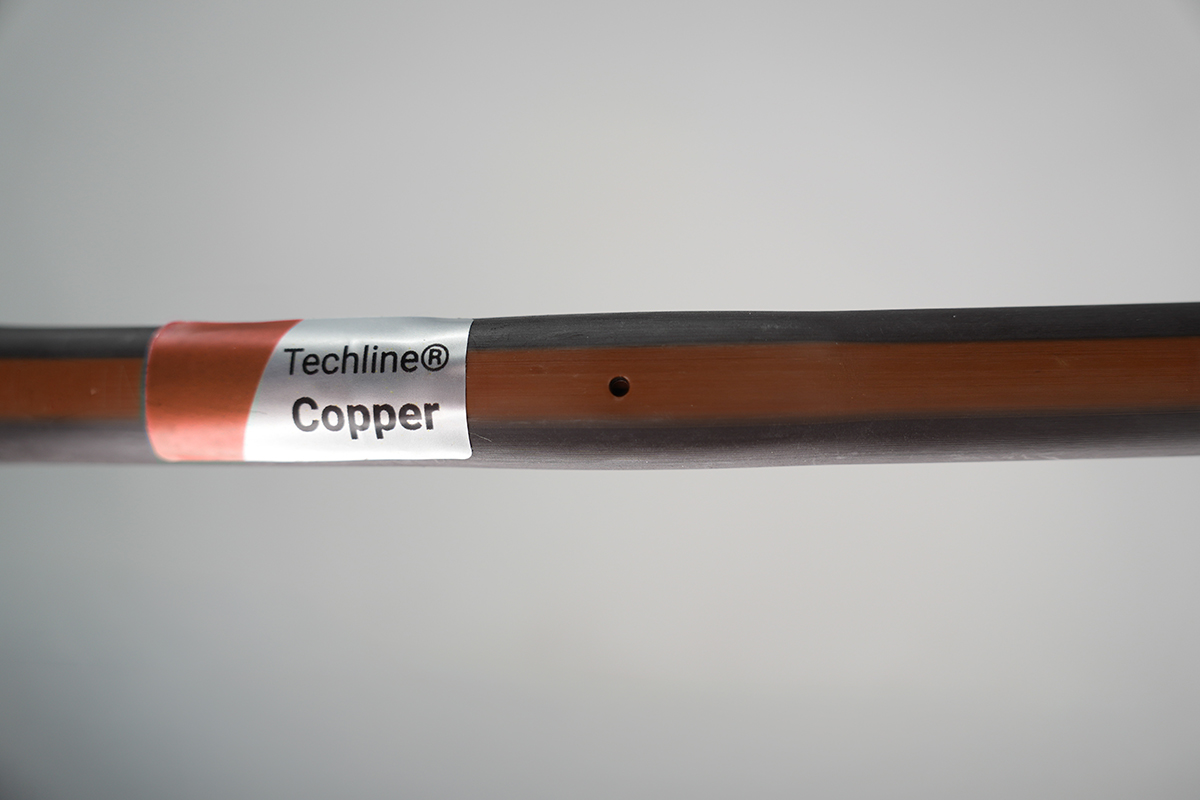

Techline® Copper
The only dripline with three levels of root intrusion protection: Cupron copper oxide in the emitter, copper stripe, and patented physical root barrier.
Built Around Real-World Irrigation Problems
If your projects face tight beds, steep grades, long lateral runs, heavy root pressure, or non-potable water rules, product selection cannot be one-size-fits-all. The Techline® lineup gives you purpose-built options to solve specific field problems while keeping installation and maintenance predictable.
Nine dripline options. Three fitting systems. One complete landscape platform.

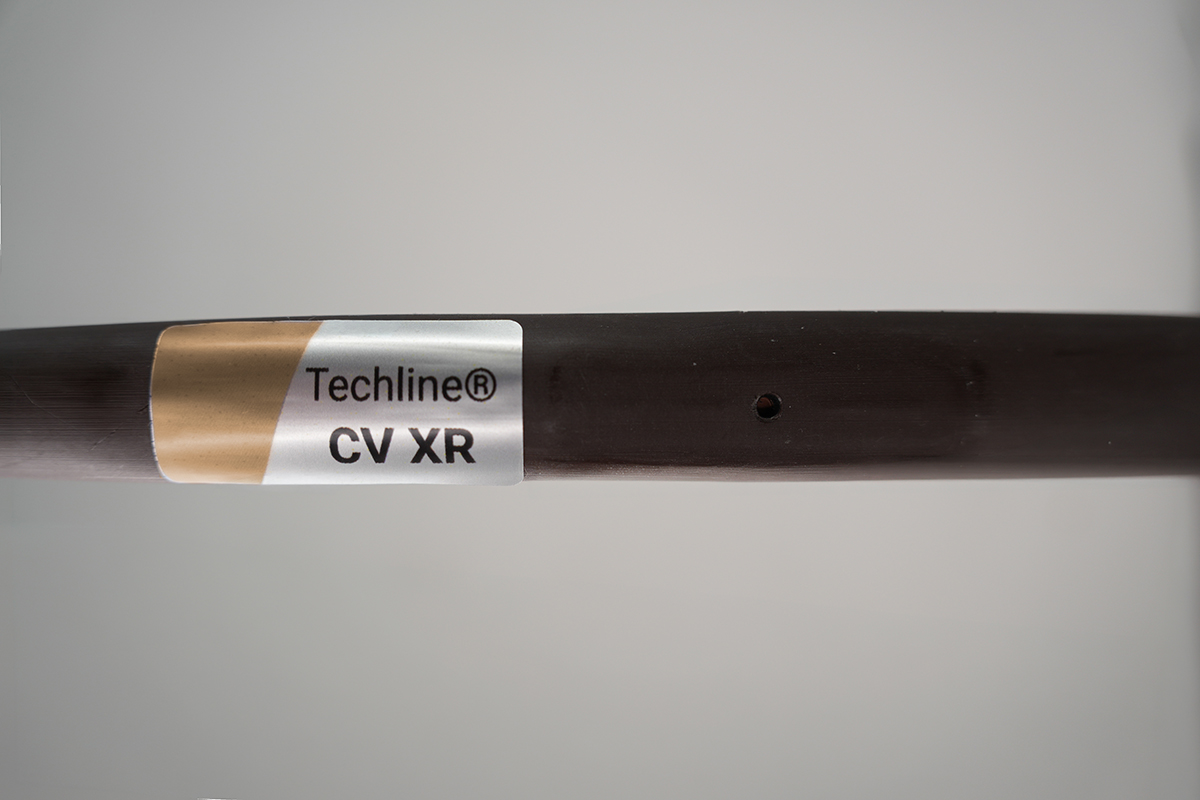

Techline® CV XR
The industry-leading Techline CV now with Cupron copper oxide injected directly into the emitter. PC in-line drip with check valve and anti-siphon — built for subsurface applications.

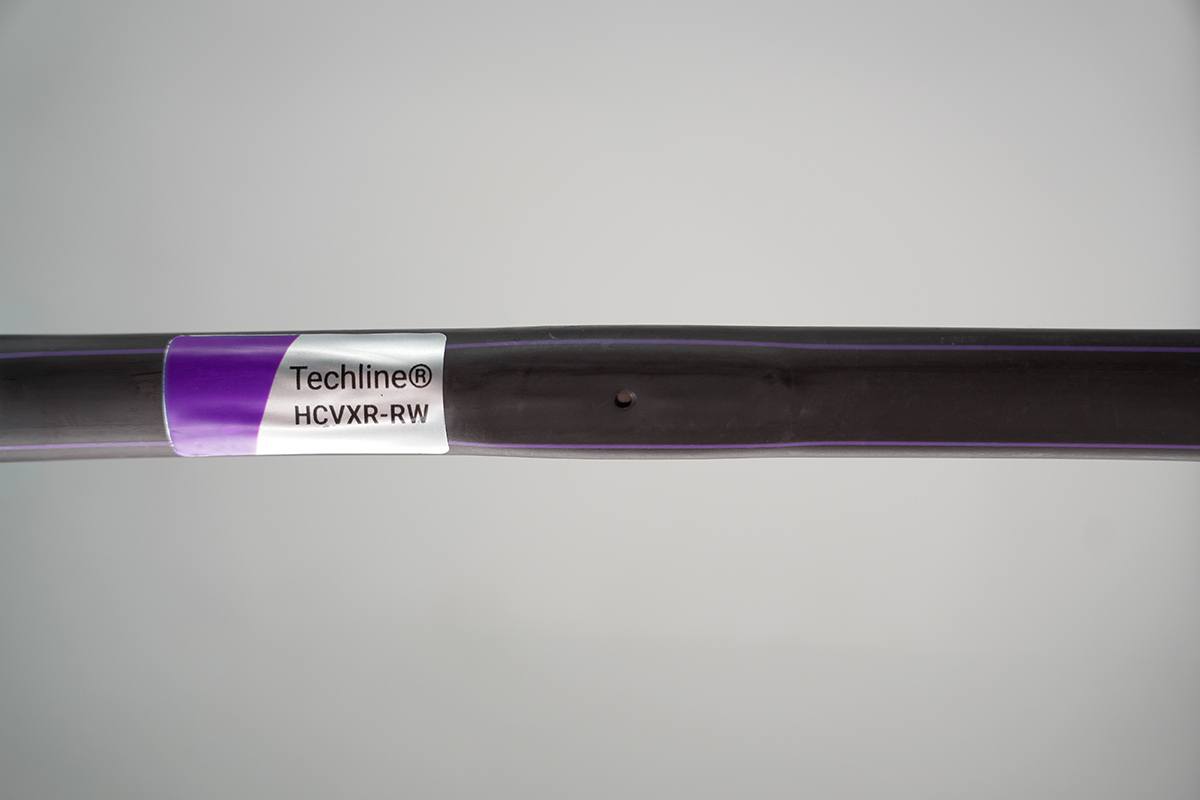

Techline® HCVXR-RW
HCVXR protection for reclaimed water with purple-striped tube for subtle compliance. Four flow rate options.

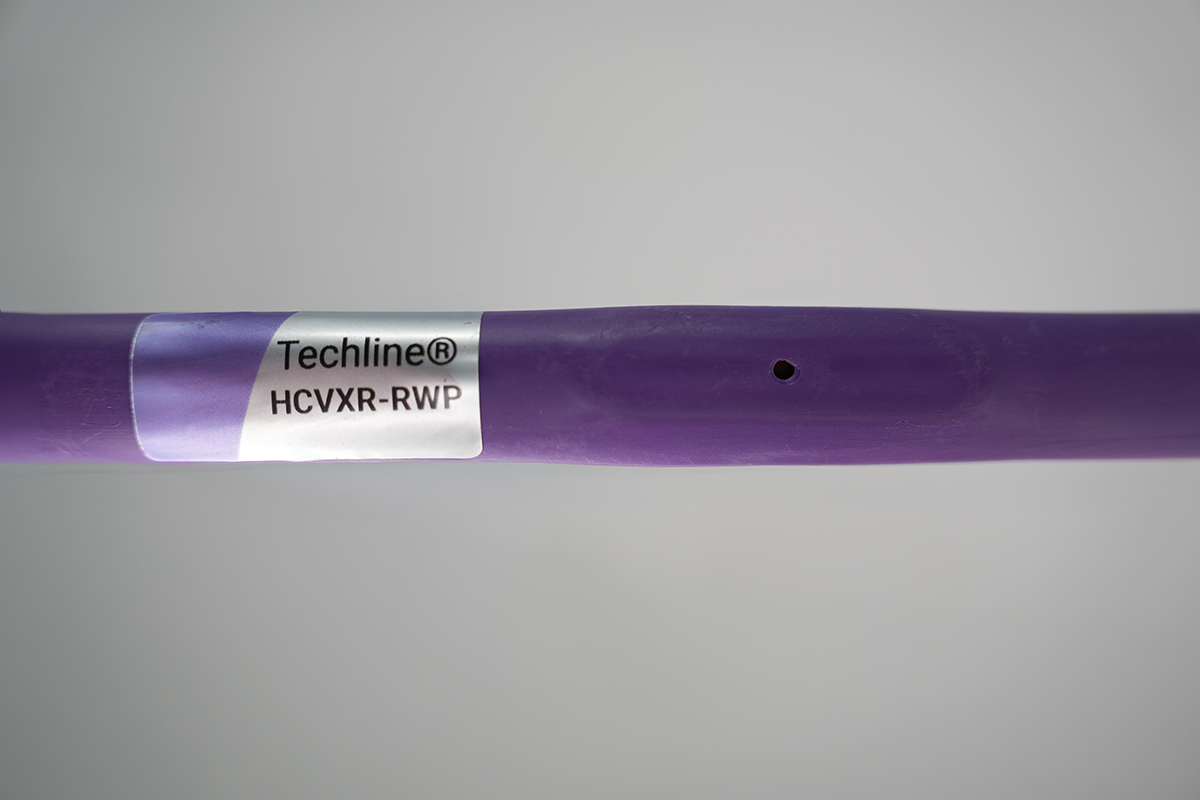

Techline® HCVXR-RWP
HCVXR protection for reclaimed water with solid purple tube for maximum visibility. Four flow rate options.

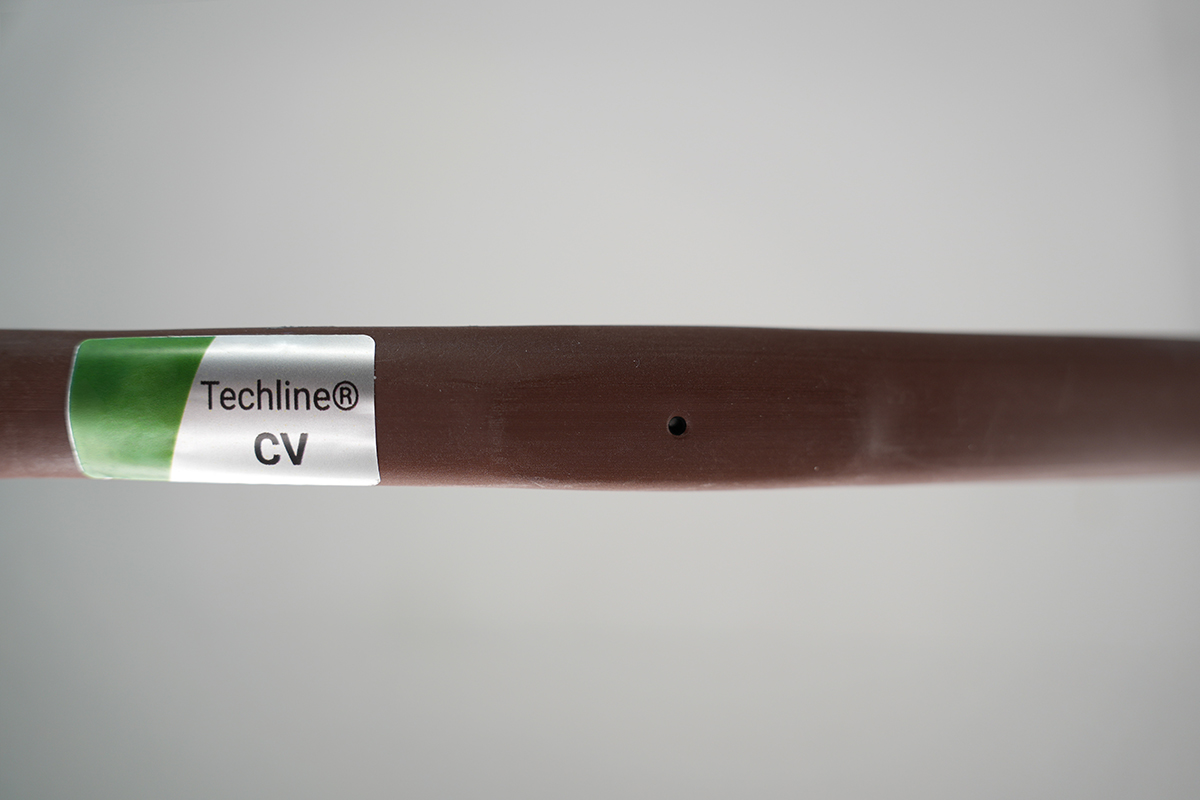

Techline® CV
The benchmark landscape dripline. Physical root barrier, check valve, the broadest emitter selection in the lineup, and LEED-qualified recycled PE construction.

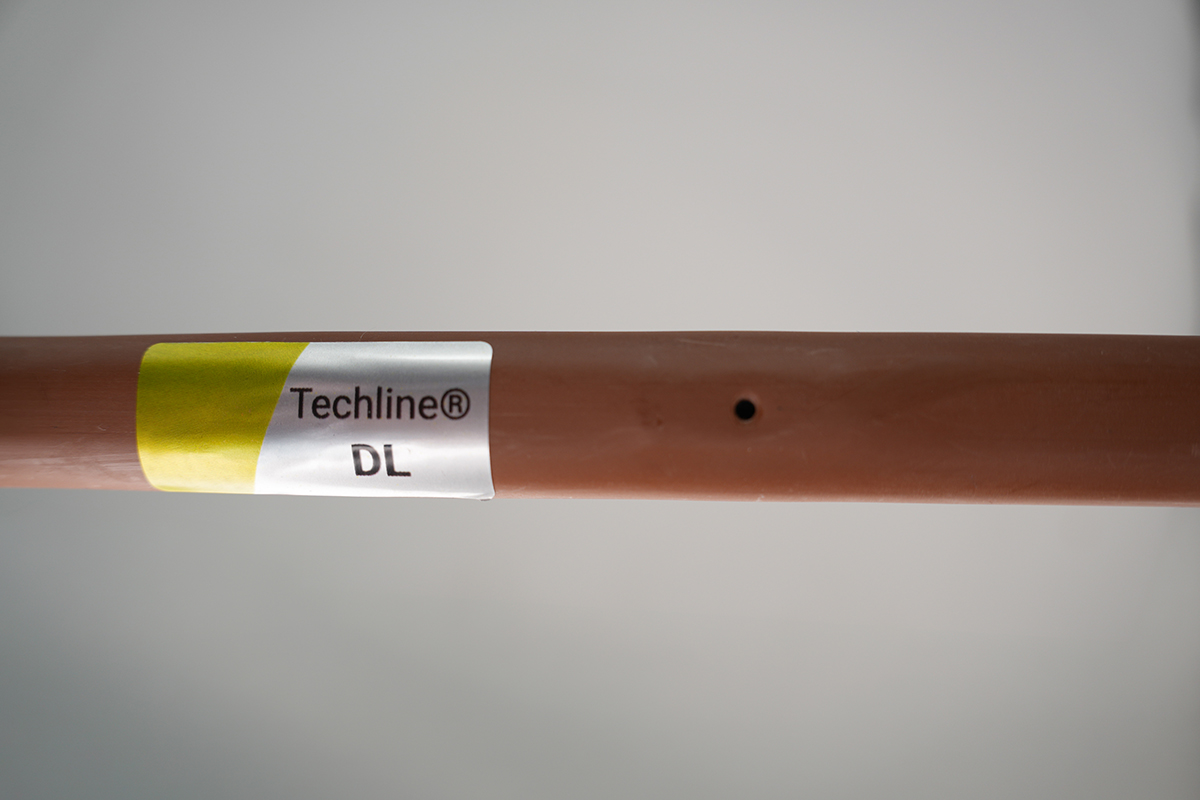

Techline® DL
The original anti-siphon emitter in landscape dripline, proven in demanding agricultural applications since 2000. Wide operating range: 6–58 psi.

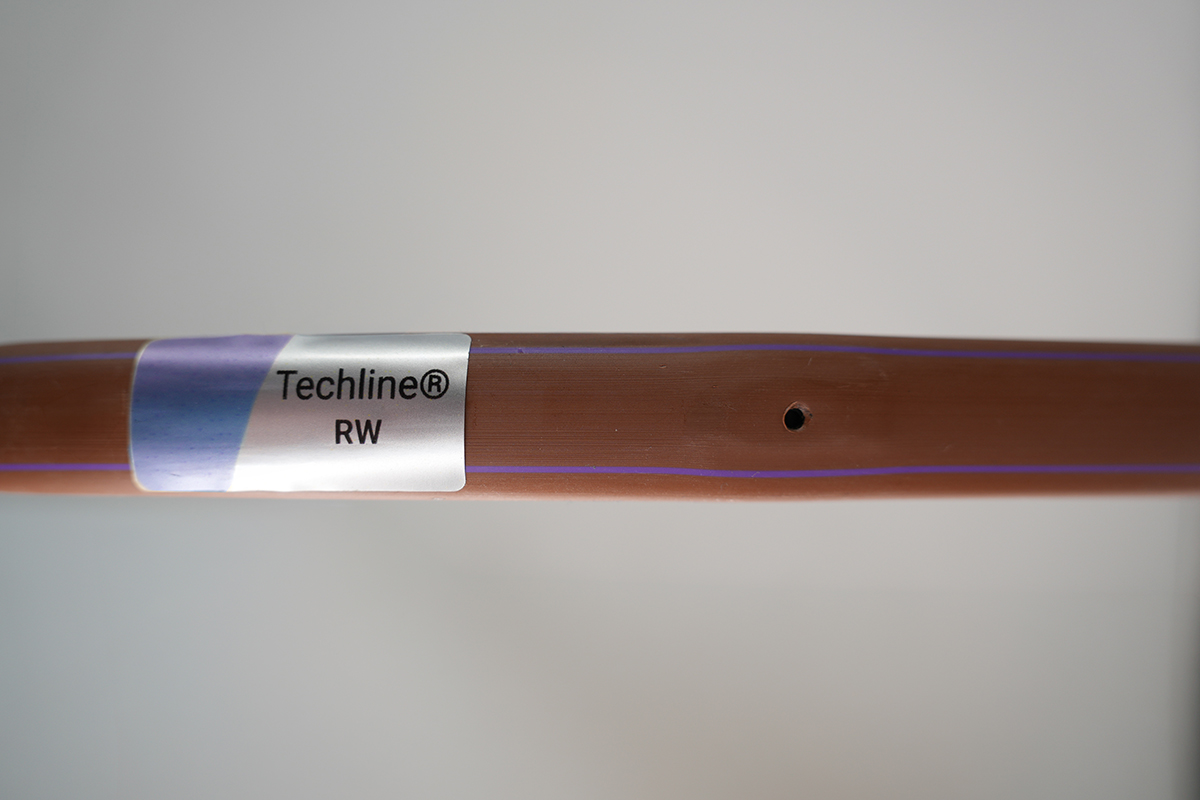

Techline® RW
Reliable pressure-compensating dripline for reclaimed water with purple-striped tube for subtle compliance. ISO 9261 compliant.

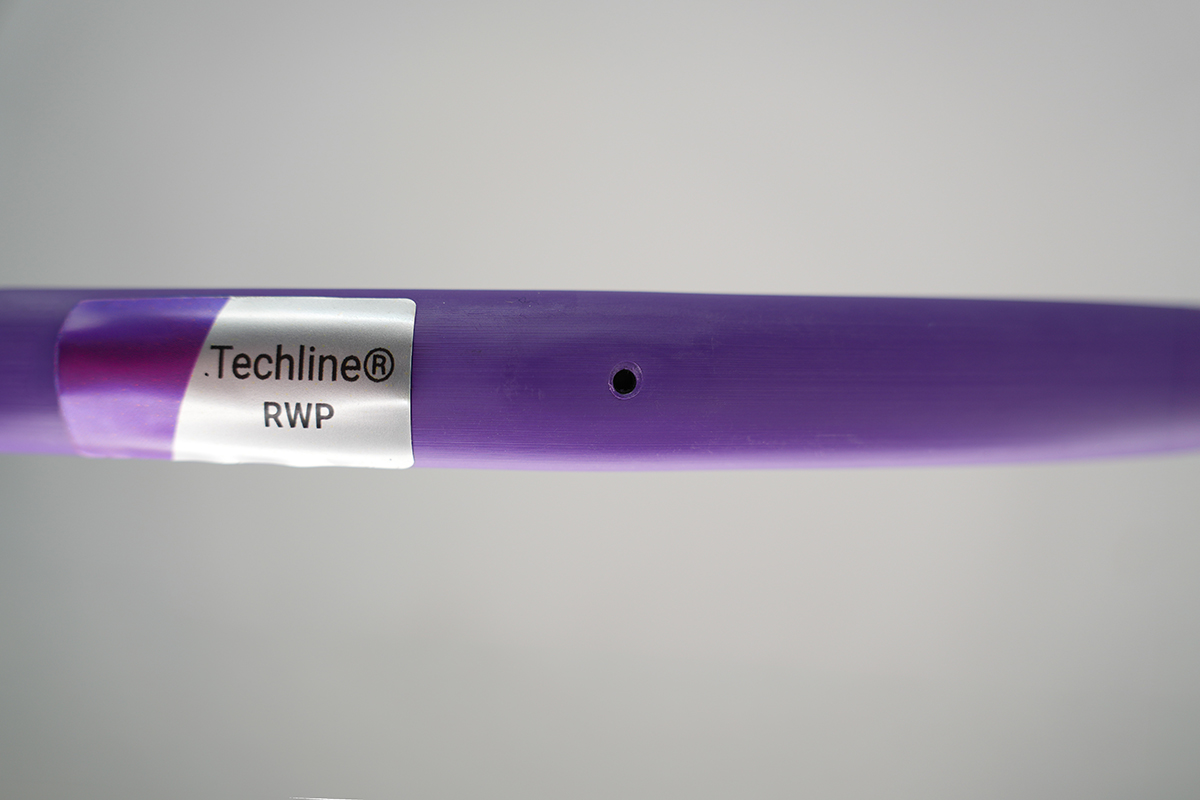

Techline® RWP
Reliable pressure-compensating dripline for reclaimed water with solid purple tube for maximum visibility. ISO 9261 compliant.

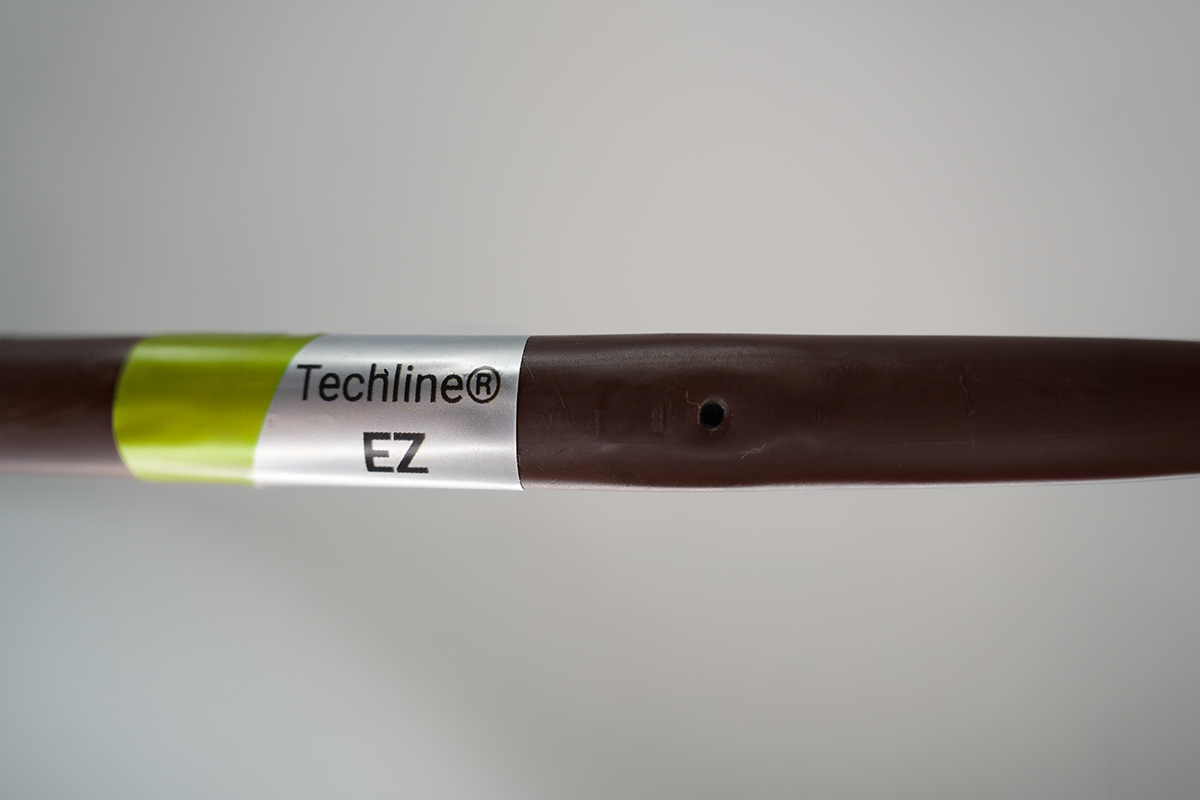

Techline® EZ
One coil, two fittings, under an hour to install. The 12mm dripline for small and medium beds that disappears into the landscape. 6" emitter spacing option.
Complete the System: Fittings & Connectors
Every Techline® dripline pairs with a matching fitting system. Choose from standard 17mm insert fittings, 12mm fittings for Techline EZ, or the TechLock™ push-to-connect system for faster installation and reduced crew fatigue.
Choosing the Right Dripline for Your Landscape Irrigation Project
| Product | Copper Oxide | Reclaimed Water | Hold Back Feet | Anti-Siphon | Pressure Compensated | Min. Pressure | Emitter Warranty |
|---|---|---|---|---|---|---|---|
| Techline® Copper | ✓ Emitter | — | 8.3 ft | ✓ | ✓ | 21.8 psi | 7 yr MD/ 10 yr ESC |
| Techline CV XR® | ✓ Emitter | — | 4.6 ft | ✓ | ✓ | 14.5 psi | 7 yr MD/ 10 yr ESC |
| Techline® HCVXR-RW | ✓ Emitter | ✓ | 8.3 ft | ✓ | ✓ | 21.8 psi | 7 yr MD/ 10 yr ESC |
| Techline® HCVXR-RWP | ✓ Emitter | ✓ | 8.3 ft | ✓ | ✓ | 21.8 psi | 7 yr MD/ 10 yr ESC |
| Techline® CV | — | — | 4.6 ft | ✓ | ✓ | 14.5 psi | 7 yr MD/ 10 yr ESC |
| Techline® DL | — | — | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |
| Techline® RW | — | ✓ | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |
| Techline® RWP | — | ✓ | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |
| Techline® EZ (12mm) | — | — | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |
Looking for more products? Download the Landscape & Turf Catalog
