Landscape & Turf

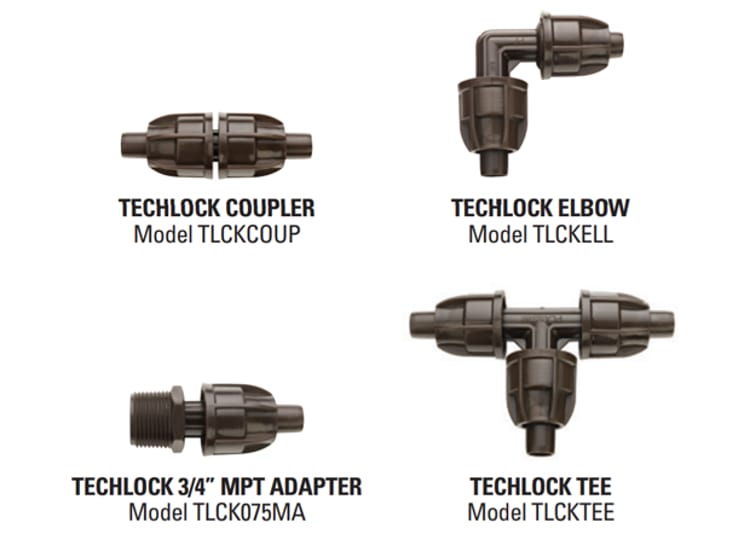

TechLock Fittings

Simple and Efficient Installation With Reduced Physical Strain
Ergonomic design enables quick field installation and reuse while reducing physical strain on installation crews.

TechLock Fittings

Why TechLocl Fittings?

  • Industry Leading Pressure Rating
    Get maximum performance and durability with our industry leading pressure rating and pullout resistance.
  • Warranty Ensures Confidence
    Specifiers, contractors and distributors will have peace of mind with our warranty – 10 years for subsurface installations and 5 years for surface installations.
  • Size Range Flexibility
    16mm and 17mm outside diameter size range simplifies the job for designers and contractors.
  • Visually Appealing Color
    Dark brown color blends well with both the dripline and surrounding landscapes.


  • Fits Techline HCVXR, HCVXR-RW and RWP, CV, DL, RW and RWP driplines, and PE tubing


  • Tubing internal diameter: 0.530” – 0.560“
  • Tubing wall thickness: 0.035” – 0.050“
  • Tubing outside diameter: 0.600” – 0.660“
  • Working temperature range: 32˚ F – 140˚ F
  • Operating pressure: 0 to 100 psi
  • Pull-out resistance: 67 ft-lbs.
  • Warranty:
    10 years for below ground (subsurface) installations
    5 years for above ground (surface) installations
Need help finding the best solution?

Need help finding the best solution?

Contact our Landscape & Turf experts to learn which solution is suited for your needs.
