Techline® EZ
Techline® EZ

Techline® EZ

IDEAL FOR SMALL AND MEDIUM AREAS

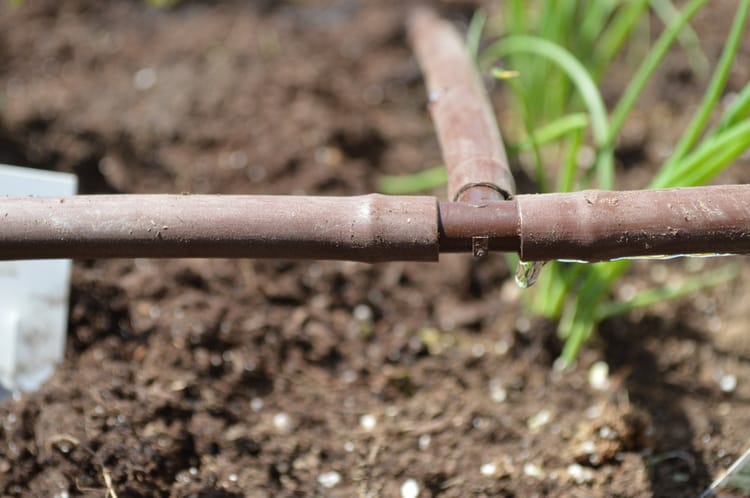

One coil, two fittings, less than one-hour installation. It's the simplest solution for small sites. Netafim's Techline EZ is the 12mm dripline for on-surface looped systems that installs fast, saves water and "disappears" into the landscape.

Anti-Siphon
Overview

Why Techline® EZ?

The first Anti-Siphon emitter in Landscape dripline, successfully used in harsh agricultural applications before its introduction into Landscape. The emitter is pressure compensating and continuous flushing, the anti-siphon feature prevents ingestion of debris into the tubing caused by vacuum.

  • Laser Etched, For Easy Identification
  • Made With Post-Consumer Recycled Material
  • Qualifies for Use on Leed Projects
  • UV Resistant Tubing
  • Self-Contained, Onc-Piece Dripline Construction

Product Advantages

  • Less Visually Obtrusive
    12mm diameter tubing is less noticeable in landscape installations.
  • Self-Contained, One-Piece Dripline Construction
    Assures reliable, easy installation.
  • Flexible UV Resistant Tubing
    Adapts to any planting area shape – tubing curves at a 6″ radius. On-surface installations withstand heat and direct sun.
  • More Cost-Effective in Smaller Bed Areas
    24% smaller diameter tubing.

Applications

  • Subsurface or on-surface installations
  • Bed areas that require shorter lateral lengths
  • Areas subject to vandalism
  • Planting areas
  • Curved, narrow, and angular planting areas
  • Flower beds, trees, and shrubs
  • Rooftop gardens
  • Vegetable gardens
  • Green walls
  • High traffic or high liability areas
  • Raised planters

Specifications

  • Emitter flow rates: 0.26, 0.4, 0.6 and 0.9 GPH
  • Emitter spacings: 6″, 12″, and 18″ (6″ available for 0.26 and 0.4 GPH only)
  • Uses 12mm Netafim Insert Fittings or any compression fitting for 0.426″ diameter tubing
  • Pressure compensation range: 6 to 58 psi
  • Bending radius:  6″
  • Maximum system pressure: 58 psi
  • Minimum pressure required: 6 psi
  • Tubing diameter: .510″ O.D.; .426″ I.D.
  • Coil length: 200′, 250′, 300′, 500′, 1,000′
  • Recommended minimum filtration: 120 mesh
  • Diaphragm made of silicon
  • ISO 9261 Standard Compliance
