Landscape & Turf

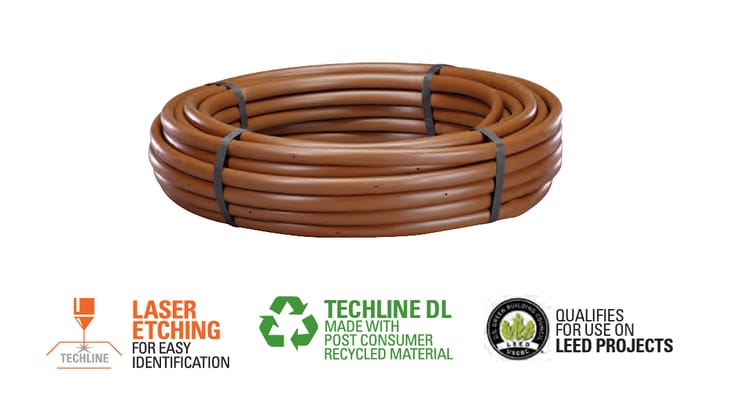

Techline® DL

This dripline provides maximum uniformity for both subsurface and on-surface installations. The pressure compensating emitters are ideal for sloping terrains and the anti-siphon feature prevents ingestion of debris into the tubing.

Why Techline™ DL?

  • The First Anti-Siphon Emitter In Landscape Dripline
    Emitter manufactured and successfully used in harsh agricultural applications since 2000. Emitter is pressure compensating and continuous flushing.

Product Advantages

  • Emitter With Anti-Siphon Feature
    Prevents ingestion of debris into tubing caused by vacuum.
  • Self-Contained, One-Piece Dripline Construction
    Assures reliable, easy installation.
  • Flexible UV Resistant Tubing
    Adapts to any planting area shape – tubing curves at a 7″ radius. On-surface installation withstands heat and direct sun.


  • Subsurface or on-surface installations
  • Curved, angular or narrow planting areas
  • High traffic/high liability areas
  • Areas subject to vandalism
  • High wind areas
  • Turf, shrubs, trees
  • Slopes
  • At-grade windows
  • Sports turf


  • Emitter flow rates: 0.26, 0.4, 0.6 or 0.9 GPH
  • Emitter spacings: 12″, 18″, or 24″ (24″ available in 0.6 and 0.9 GPH only)
  • Pressure compensation range: 6 to 58 psi
  • Bending radius: 7″
  • Maximum recommended system pressure: 58 psi
  • Minimum recommended system pressure: 6 psi
  • Tubing diameter: 0.66″ OD; 0.56″ ID; 0.050″ wall
  • Coil length: 100′, 250′, 500′, 1,000′
  • Recommended minimum filtration: 120 mesh
  • Diaphragm made of silicon
  • ISO 9261 Standard Compliance

Limited Warranty For Techline™ DL

Netafim warrants Techline™ DL to be free from original defects in materials and workmanship for a period of seven (7) years and ten (10) years for environmental stress cracking – from the date of original delivery.
