Backflush Controllers

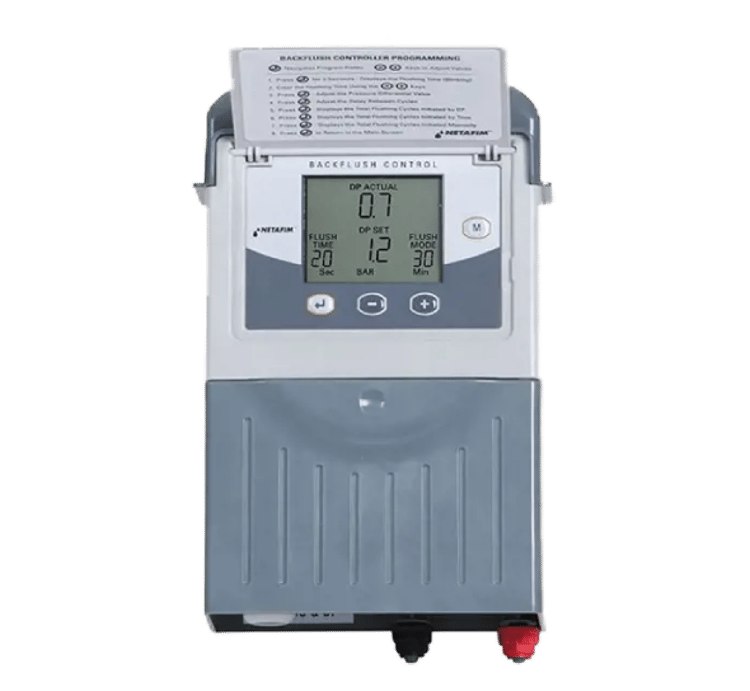

Netafim Backflush Controller

The Netafim Backflush Controller is a modular, user-friendly Backflush Controller for Automatic Filters. They are available in several options to fit your specific filtration application in both 24VAC and 12VDCL models.

Why Backflush Controllers

Modular controller is expandable from 1 to 10 outputs. Adding more outputs is quick and easy – no tools required.
Can be used with automatic disc filters, automatic sand media filters and automatic screen filters.
Flush cycle is triggered by time or pressure differential and each type of flush cycle is logged by the controller.
Design flexibility with an embedded pressure differential (PD) gauge or an external PD gauge.
Detection of continuous backflush cycles causes an alarm to sound.
User-friendly LCD display and keyboard.
Ability to manage a downstream pressure sustaining valve.
Flexible settings for pre-dwell, dwell and flush times allows programming to meet system requirements.

Product Advantages

Modular controller is expandable from 1 to 10 outputs. Adding more outputs is quick and easy – no tools required.
Can be used with automatic disc filters, automatic sand media filters and automatic screen filters.
Flush cycle is triggered by time or pressure differential and each type of flush cycle is logged by the controller.
Design flexibility with an embedded pressure differential (PD) gauge or an external PD gauge.
Detection of continuous backflush cycles causes an alarm to sound.
User-friendly LCD display and keyboard.
Ability to manage a downstream pressure sustaining valve.
Flexible settings for pre-dwell, dwell and flush times allows programming to meet system requirements.

Applications

Detection of continuous backflush cycles.
Ability to manage downstream pressure sustaining valve.
Management of pre-dwell, dwell and flush times
Addition of new outputs

Specifications

Outputs: 2, 4, 6, 8 or 10
Voltage: 12VDC Latching or 24VAC
Inputs: 1 Analog PD Gauge or 1 Digital PD Gauge
Power Source DC Model: 12V Battery or 4 ‘D’ Alkaline Batteries
Power Source AC Model: External Power Supply
High-Low PD Hydraulic Connectors
Operating Temperature: 32 – 140° F
Dimensions: Height 9 1/2″, Length 5 5/8″, Depth 3 1/4″, Weight 1.3 lbs

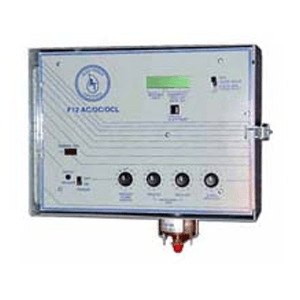

Alex-Tronix Backflush Controller

Product Advantages

Standard features include a pressure differential switch, flush time setting and dwell time setting.
Quick and easy programming.
Some controllers have counters and alarm settings.
