Sandstorm Single Chamber

High Quality Metal Media For Enhanced System Longevity

Superior irrigation protection built to last and always on guard. Sandstorm is a robust media filter that keeps your water and business flowing smoothly. When you're pumping water from an open or contaminated source, you can't afford to take any risks. SandStorm™ media filters don’t just protect your irrigation investment, they maximize your productivity over time by maintaining absolute flow uniformity even with the harshest water - ensuring higher and more uniform crop yields. Designed by the world's experts, this filter gives you maximum protection while requiring minimal maintenance.

Update Features
Uniram, drip irrigation products

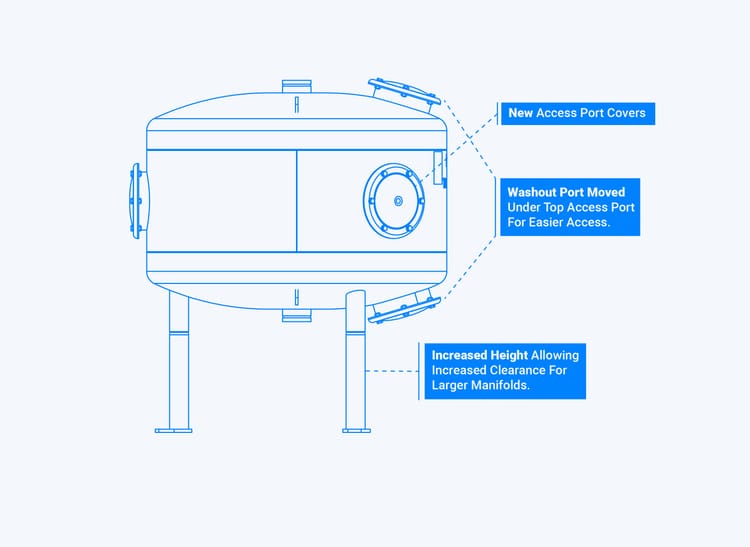

Sandstorm Upgraded Features For Easier Access And Functionality

  • New Access Port Covers
  • Washout port moved under top access port for eay access and management
  • 48" Tank - Increased leg height allowing for larger manifold installations

When Should You Choose To Use SandStorm™ Filters?

Media filters are highly recommended when irrigating with poor quality water or in the following conditions:

  • As the primary filtration for surface water in single/multi-season driplines
  • When water contains iron and/or manganese
  • For SDI applications using harsh water sources
Benefits
Overview

What Makes SandStorm™ The Leading Media Filters In The Industry?

  • Built to last. Rugged tank design and industry-leading anti-corrosion and UV resistance provide long-term rust protection even in wet and humid climates.
  • Anti-clogging: Designed by world experts, our media absorbs particles as part of a depth filtration process, protecting your system from mineral, silt, and sand infiltration.
  • For uniform irrigation: Our system provides super-efficient back-flush cleaning cycles that ensure irrigation uniformity, season after season.
  • Maintenance with farmers in mind: Large access ports and additional service ports make the job of replacing media and performing routine maintenance easy and hassle-free.
  • Grows with your business: Modular manifold design makes it quick and easy to scale up your filtration system as your irrigation needs grow.
  • Find the diameter that fits best: Choose from a wide range of single and double chamber diameters & configurations that correspond precisely to the flow rate of your system, ensuring optimal filtration efficiency.
  • Goes where you need it: Skid mounted legs allow you to easily turn SandStorm™ into a mobile system.

Product Advantages

  • Single Chamber Filter: Efficient filtration and backflush uniformity.
  • Easy Maintenance: Large top and side access ports for loading media
  • Two-layer coating (phenolic and epoxy) for industry-leading high corrosion and UV protection – for both the tanks and the manifolds.
  • Injection-molded PVC underdrain system with mushrooms and slots provides cleaning across the entire sand media bed.
  • Maximum protection and reliability in harsh conditions.

Specifications

  • Flow Range: 130 to 350 GPM
  • Maximum Operating Pressure: 115 psi
  • Minimum Backflush Pressure Required:
    30 psi downstream of the filter during backflush
  • Backflushing Flow Rate: 88 to 190 GPM
  • Access Port on Tank Dome and Sides Secured with Bolts:
    8” for 30” Tank, 10” for 36” and 48” Tanks
  • Media Depth: 16”
