Screen Filters

ScreenGuard™ Automatic Screen Filters

Your first line of defense in protecting your irrigation system.

Groundwater or harsh water can pose a real challenge to the operation of your  irrigation system. Screenguard was designed with the largest filtration area in the industry. A bigger screen means less cleaning cycles and enhanced system longevity. Screenguard offers uncompromized filtration operation with the most efficient self cleaning mechanism saving you labor and protecting your irrigation system.



Join Us at the ScreenGuard Technology Event>>>

Screen filters - ScreenGuard™ | Netafim
Screen filters - ScreenGuard™ | Netafim

When should you choose to use ScreenGuard™ filters?

Screen filters are highly recommended for irrigation using poor quality water, for heavy-duty usage, and in the following conditions:

  • Primary filtration for well water and/or single use dripline applications in multiple water sources
  • Primary filtration for micro and open field sprinkler applications in various water sources
  • Primary filtration for landscaping applications
Product Advantages
Product Advantages

What makes ScreenGuard™ the leading screen filter in the industry?

  • Bigger is Better. The largest filtration in the industry prevents more dirt and sand particles from entering your irrigation system, reducing the risk of clogging and sub-optimal flow rates.
  • Grow with confidence. Gain greater peace of mind, knowing that your irrigation system is running at maximum efficiency.
  • Less costly maintenance. By requiring less back-flush cycles, our screen filters save you time and money on routine cleaning and maintenance.
  • Designed around you: From 4” all the way up to 10”, and with various mesh rating screens, you are sure to find the screen filter that suits your needs.
  • Plug and play. Screen filters arrive fully assembled, keeping onsite preparation and set-up costs to an absolute minimum.
  • Built to perform. The filter body is made with 2-layers of high-quality carbon steel that protects against rust, and the cover and piston are made from a durable anti-corrosion composite material.
ScreenGuard™ APP  | Netafim

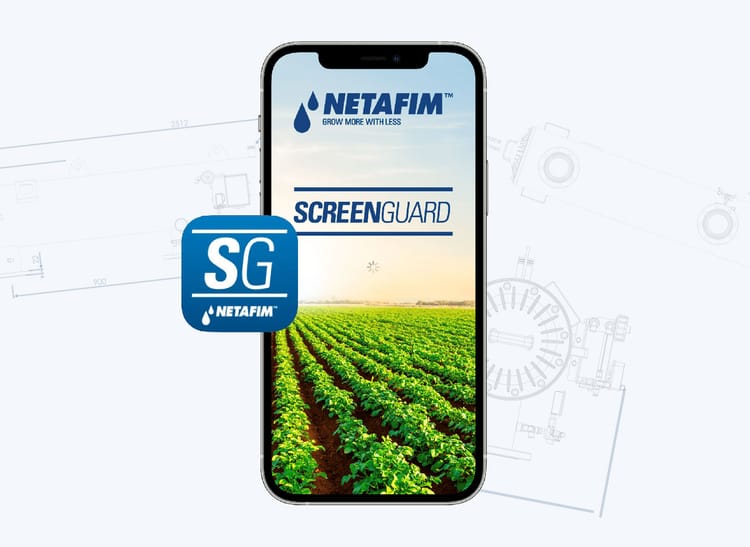

Get Better Control With Netafim SG App

Netafim ScreenGuard™ Automatic Filter is bluetooth activated with the Netafim SG app for better control of filter performance.

Download from the App Store or Google Play.



app_store.jpg   2000px-Get_it_on_Google_play.svg.png

Filter Operations
Filter Operations

Description of Operation

A coarse screen protects the finer screen from large particles and it can be periodically cleaned manually. Automatic flushing of the fine screen is activated once the pressure differential in the filter reaches a pre-determined value. During the flushing cycle, the backflush valve opens, pressure is released from the piston and debris laden water is discharged through the backflush valve. Pressure in the hydraulic motor chamber and the dirt collector is significantly lowered causing the dirt collection nozzles to move along and rotate cleaning the whole internal screen surface. The flushing cycle takes 5 seconds. The backflush valve closes at the end of the cycle, pressure is reapplied, moving the nozzles back to their resting position and the filter is cleaned. During the whole process, water supply is uninterrupted.



Specifications
Specifications

Product Advantages

  • Extra-large screen size allows the filter to work with higher flow rates and deal with harsh water conditions
  • Filter body is made from high quality carbon steel with two-layer coating, offering superb corrosion resistance
  • Cover and piston made from durable non-corrosive materials for easy and cost-effective maintenance
  • Different mesh rating screens suited for a variety of applications

Applications

  • Primary filtration for use with well water and/or single use dripline applications in multiple water sources
  • Primary filtration for micro and open field sprinkler applications in multiple water sources
  • Primary filtration for landscaping applications

Specifications

  • Minimum Operating Pressure: 29 psi
  • Maximum Operating Pressure: 145 psi
  • Maximum Water Temperature:149˚ F (65˚ C)
  • Connection Type: Flanged
  • Screen Mesh Sizes: 080, 120, 150, 200
  • Sizes: 4”, 4” Super, 6”, 6” Super 8” and 10”
  • Control Voltage: DC Latching
  • Filter Housing: 2-layer carbon steel coating
Resources
Download
Download
CAD Details
Need help finding the best solution for your farm?

Need help finding the best solution for your farm?

Contact a filtration expert to learn which ScreenGuard™ filter is the best fit for your needs
